Things used in this project

Hardware components:
Photon new
Particle Photon
×2
Servo (generic)
×1
11026 02
Jumper wires (generic)
×6
12002 04
Breadboard (generic)
×2
13285 01
PIR Motion Sensor (generic)
×1
Software apps and online services:
Q8wtlimqnp04fzhtr9v5

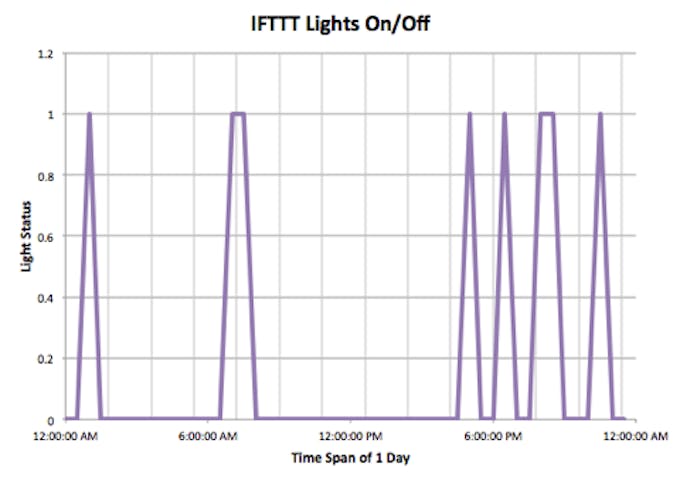

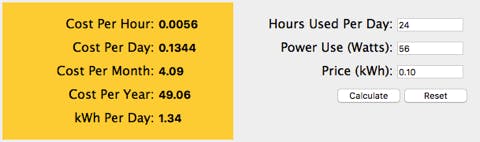

IFTTT Maker service

Schematics

Servo Motor Circuit
Servo circuit febpxgst8u
PIR Motion Sensor Circuit
Pir circuit m4kednbcsi

Code

PIR Motion SensorC/C++
This code allows photon 1 to publish an event to the cloud when motion is detected.
int PIRSensor = D0;
int state=0;
void setup(){
pinMode(D7,OUTPUT);
pinMode(PIRSensor,INPUT);
}

void loop() {

  if (digitalRead(PIRSensor) == HIGH){
       digitalWrite(D7, (state) ? HIGH : LOW);
       Particle.publish("motion-detected","light");
       state = !state;
       delay(1000);
   }
   delay(10);
}
Servo MotorC/C++
This code allows photon 2 to trigger the servo motor by subscribing to the event published by photon 1.
Servo myservo;  // create servo object to control a servo
                // a maximum of eight servo objects can be created


int pos = 75;    // variable to store the servo position
int led = D7;


void setup( ) {
    pinMode(led,OUTPUT);
    digitalWrite(led,LOW);
  // attaches the servo on the D0 pin to the servo object
  myservo.attach(D0);

  // register the Spark function

  Particle.subscribe("motion-detected", monkey, "4b0050001451353432393433");
}

void monkey(const char *event, const char *data)
{
     digitalWrite(led,HIGH);
     if (strcmp(data, "light")==0)
     {
myservo.write(115);
delay(1800000);
myservo.write(75);
     }
}


void loop()
{

}
