120/240 Particle WiFi Switch and Sensor

After researching the Sonoff WiFi switch, I decided to build my own switch box mountable 120V input IoT switch.

AdvancedWork in progress5 hours111

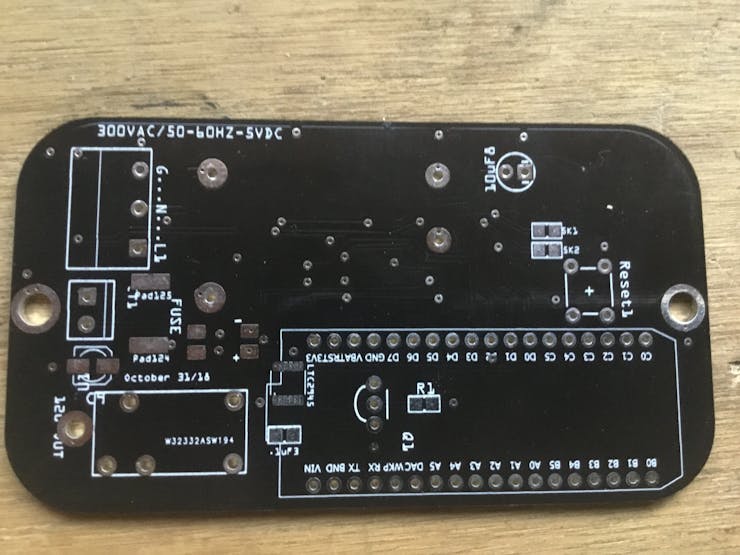

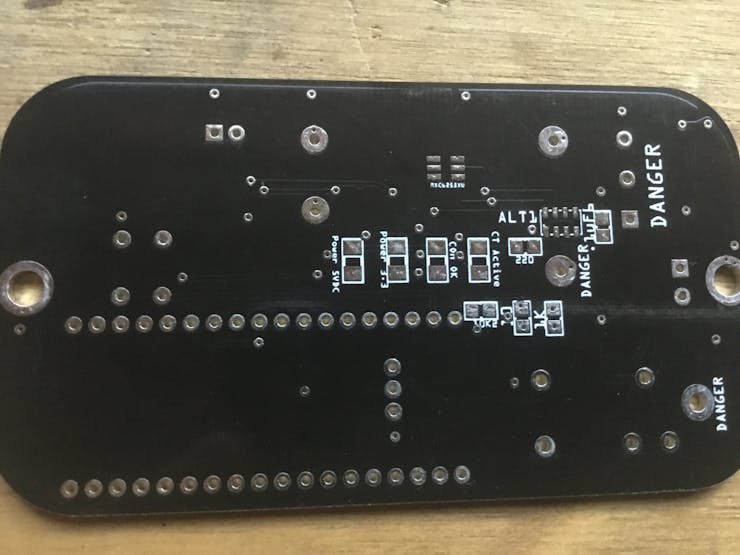

120/240 Particle WiFi Switch and Sensor

Things used in this project

Hardware components

Photon
Particle Photon
×1
Electron
Particle Electron
×1

Software apps and online services

Particle Build Web IDE
Particle Build Web IDE

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

Particle Gerber FIle

Fritzing File

Code

Particle Code

C/C++
// This #include statement was automatically added by the Particle IDE.
#include <Adafruit_MPL3115A2.h>
Adafruit_MPL3115A2 baro = Adafruit_MPL3115A2();
#define LTCADDR1 0x69//Table 1 both LOW (7bit address)Feed
#define LTCADDR2 0x67//Table 1 both LOW (7bit address)Circuit1
#define LTCADDR3 0x6f//Table 1 both LOW (7bit address)Circuit2
#define sda D0
#define scl D1
#define Relay D4
#define COMOk D3
#define CTOn D2
#define MXC6255ADDR 0010101

//================================================================
//Acceleromiter
//================================================================

byte XOUTMSB,XOUTLSB,YOUTMSB,YOUTLSB;
unsigned int SHTH, SHC, ORC;
float XMOT, YMOT, STAT;

//================================================================
//Voltage_Sensor
//================================================================

byte ADCvinMSB, ADCvinLSB, curSenseMSB, curSenseLSB, AinVMSB, AinVLSB;
unsigned int ADCvin, ADCcur, AinV;
float inputVoltage1,  current10, current1, current0p1, current0p01;

int set_port  = 1;
int incomingByte = 0;

const long interval = 10000;
unsigned long previousMillis =  0;

LEDStatus blinkRed(COMOk, LED_PATTERN_BLINK);


void setup() {

   Serial.begin(9600);
   waitFor(Serial.isConnected, 30000);
   Serial.println("Adafruit_MPL3115A2 test!");
   while(! baro.begin()) {
    Serial.println("Couldnt find sensor");
    delay(1000);
    Particle.function("ON", SwitchOn);
    pinMode(D4, OUTPUT);
    pinMode(D3, OUTPUT);
    pinMode(D2, OUTPUT);
    Serial.println(WiFi.localIP());

    blinkRed.setActive(true);
    delay(3000);
    blinkRed.setActive(false);

  }
}

void loop() {

  char message[120];
  char data1[256];
  int sensorValue;
  int    status;
  int8_t result;
  char message1[120];
  int ADCvoltage;

if (millis() - previousMillis >= (interval )) {

  float pascals = baro.getPressure();
  Serial.print(pascals/3377); Serial.println(" Inches (Hg)");

  float altm = baro.getAltitude();
  Serial.print(altm); Serial.println(" meters");

  float tempC = baro.getTemperature();
  Serial.print(tempC); Serial.println("*C");

  sprintf(message, "Temp %f",tempC);
  Particle.publish("Temperature", message,  PRIVATE);

  //=======================================================================

  Wire.beginTransmission(MXC6255ADDR);//first get Input Voltage - 80V max
  Wire.write(0x1E);
  Wire.endTransmission(false);
  Wire.requestFrom(MXC6255ADDR, 2, true);
  delay(1);
  XOUTMSB = Wire.read();
  XOUTLSB = Wire.read();
  SHC = ((unsigned int)(XOUTMSB) << 4) + ((XOUTLSB >> 4) & 0x7F);//formats into 12bit integer
  XMOT = SHC;

  Wire.beginTransmission(MXC6255ADDR);//get ADC Input 2V max
  Wire.write(0x28);
  Wire.endTransmission(false);
  Wire.requestFrom(LTCADDR3, 2, true);
  delay(1);
  YOUTMSB = Wire.read();
  YOUTLSB = Wire.read();
  SHTH = ((unsigned int)(YOUTMSB) << 4) + ((YOUTLSB >> 4) & 0x7F);//12 bit format
  YMOT = SHTH;

  //=======================================================================

  Wire.beginTransmission(LTCADDR1);//first get Input Voltage - 80V max
  Wire.write(0x1E);
  Wire.endTransmission(false);
  Wire.requestFrom(LTCADDR1, 2, true);
  delay(1);
  ADCvinMSB = Wire.read();
  ADCvinLSB = Wire.read();
  ADCvin = ((unsigned int)(ADCvinMSB) << 4) + ((ADCvinLSB >> 4) & 0x0F);//formats into 12bit integer
  inputVoltage1 = ADCvin * 0.025; //25mV resolution

  Wire.beginTransmission(LTCADDR1);//get ADC Input 2V max
  Wire.write(0x28);
  Wire.endTransmission(false);
  Wire.requestFrom(LTCADDR3, 2, true);
  delay(1);
  AinVMSB = Wire.read();
  AinVLSB = Wire.read();
  AinV = ((unsigned int)(AinVMSB) << 4) + ((AinVLSB >> 4) & 0x0F);//12 bit format
  ADCvoltage = AinV * 0.5E-3; //500uV resolution

  Wire.beginTransmission(LTCADDR1);//get sense current
  Wire.write(0x14);
  Wire.endTransmission(false);
  Wire.requestFrom(LTCADDR1, 2, true);
  delay(1);
  curSenseMSB = Wire.read();
  curSenseLSB = Wire.read();
  ADCcur = ((unsigned int)(curSenseMSB) << 4) + ((curSenseLSB >> 4) & 0x0F);//12 bit format

  current10 = ADCcur * (25E-3) / 10.0; //10mA max, unit is mA
  current1 = ADCcur * (25E-3) / 1.0; //100mA max, unit is mA
  current0p1 = ADCcur * (25E-3) / 0.1; //1A max, unit is mA
  current0p01 = ADCcur * (25E-6) / 0.01;//10A max, unit is A

  sprintf(message, "RC %f:RV %f",inputVoltage1,current0p01);
  Particle.publish("String", message,  PRIVATE);

  if(inputVoltage1 < 5 )  {
  digitalWrite(D2 ,HIGH);
  Particle.publish("CT_Active", "1",PRIVATE);

  sprintf(message, "IP %f",WiFi.localIP());
  Particle.publish("IP_Address", message,  PRIVATE);

  sprintf(message, "XMOT %f:YMOT %f",XMOT,YMOT);
  Particle.publish("String", message,  PRIVATE);

}

//========================================================================

   previousMillis = millis();
  }
}

int SwitchOn(String command) {

if(command =="1")  {
digitalWrite(D4 ,HIGH);
Particle.publish("Switch_On", "1",PRIVATE);
}
 else if(command =="2")  {
digitalWrite(D4,LOW);
Particle.publish("Switch_Off", "0",PRIVATE);
}
return 1;
}
