Voice Activated Media Appliances Using Arduino and Alexa

The unit developed here makes your appliances like TV, amplifier, CD and DVD players control with voice commands using Alexa and Arduino.

EasyFull instructions provided1 hour4,055
Voice Activated Media Appliances Using Arduino and Alexa

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Arduino Nano R3
Arduino Nano R3
×1
Arduino Micro & Genuino Micro
Arduino Micro & Genuino Micro
×1
Amazon Echo
Amazon Alexa Amazon Echo
×1
ESP8266 ESP-01
Everything ESP ESP8266 ESP-01
×1
RS 232- TTL Converter
×1
Photon
Particle Photon
×1
Echo Dot
Amazon Alexa Echo Dot
×1

Software apps and online services

Alexa Skills Kit
Amazon Alexa Alexa Skills Kit
Alexa Voice Service
Amazon Alexa Alexa Voice Service

Story

Read more

Schematics

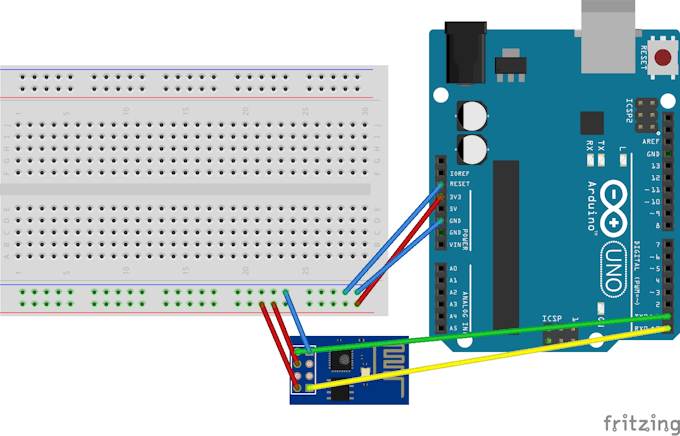

Connecting Arduino to esp8266

Uno esp connection ho79gxjivx yqsivepodd

Code

Example Code for Serial Connections of Arduino

C/C++
void setup() {
  // Open serial communications and wait for port to open:
  Serial.begin(57600);
  while (!Serial) {
    ; // wait for serial port to connect. Needed for native USB port only
  }


  Serial.println("Goodnight moon!");

  // set the data rate for the SoftwareSerial port
  mySerial.begin(4800);
  mySerial.println("Hello, world?");
}

void loop() { // run over and over
  if (mySerial.available()) {
    Serial.write(mySerial.read());
  }
  if (Serial.available()) {
    mySerial.write(Serial.read());
  }
}

Connecting to Wifi

C/C++
#include "debug.h"              // Serial debugger printing
#include "WifiConnection.h"     // Wifi connection // this file is part of my tutorial code
#include <IRremoteESP8266.h>    // IR library


WifiConnection* wifi;           // wifi connection
IRsend* irSend;                 // infrared sender


//SET YOUR WIFI CREDS
const char* myWifiSsid = "***";
const char* myWifiPassword = "*******";

//SET TO MATCH YOUR HARDWARE
#define SERIAL_BAUD_RATE    9600

//PIN 0 is D3 ON THE CHIP
#define IR_PIN              0



/*---------------------------------------*/
//Runs once, when device is powered on or code has just been flashed
void setup()
{
    //if set wrong, your serial debugger will not be readable
    Serial.begin(SERIAL_BAUD_RATE);

    //initialize wifi connection
    wifi = new WifiConnection(myWifiSsid, myWifiPassword);
    wifi->begin();

    //connect to wifi
    if (wifi->connect())
    {
        debugPrint("Wifi Connected");
    }
}


/*---------------------------------------*/
//Runs constantly
void loop()
{
}

Code for testing

C/C++
#include "debug.h"              // Serial debugger printing
#include "WifiConnection.h"     // Wifi connection
#include "Wemulator.h"          // Our Wemo emulator
#include <IRremoteESP8266.h>    // IR library


WifiConnection* wifi;           // wifi connection
Wemulator* wemulator;           // wemo emulator
IRsend* irSend;                 // infrared sender


//SET YOUR WIFI CREDS
const char* myWifiSsid = "***";
const char* myWifiPassword = "*******";

//SET TO MATCH YOUR HARDWARE
#define SERIAL_BAUD_RATE    9600

//PIN 0 is D3 ON THE CHIP
#define IR_PIN              0


/*---------------------------------------*/
//Runs once, when device is powered on or code has just been flashed
void setup()
{
    //if set wrong, your serial debugger will not be readable
    Serial.begin(SERIAL_BAUD_RATE);

    //initialize wifi connection
    wifi = new WifiConnection(myWifiSsid, myWifiPassword);
    wifi->begin();

    //initialize the IR
    irSend = new IRsend(IR_PIN, false);
    irSend->begin();

    //initialize wemo emulator
    wemulator = new Wemulator();

    //connect to wifi
    if (wifi->connect())
    {
        wemulator->begin();

        //start the wemo emulator (it runs as a series of webservers)
        wemulator->addDevice("tv", new WemoCallbackHandler(&commandReceived));
        wemulator->addDevice("television", new WemoCallbackHandler(&commandReceived));
        wemulator->addDevice("my tv", new WemoCallbackHandler(&commandReceived));
        wemulator->addDevice("my television", new WemoCallbackHandler(&commandReceived));
    }
}


/*---------------------------------------*/
//Runs constantly
void loop()
{
    //let the wemulator listen for voice commands
    if (wifi->isConnected)
    {
        wemulator->listen();
    }
}
