Things used in this project

Hardware components:
Photon new
Particle Photon
×1
PowerSwitch Tail II
×1
12002 04
Breadboard (generic)
×1
11026 02
Jumper wires (generic)
×1
USB microB Cable
×1
Wall Adapter - 5V USB
×1
Resistor 1k Ohm
×1
Transistor - NPN
×1
SPDT Mini Power Switch
×1
Software apps and online services:

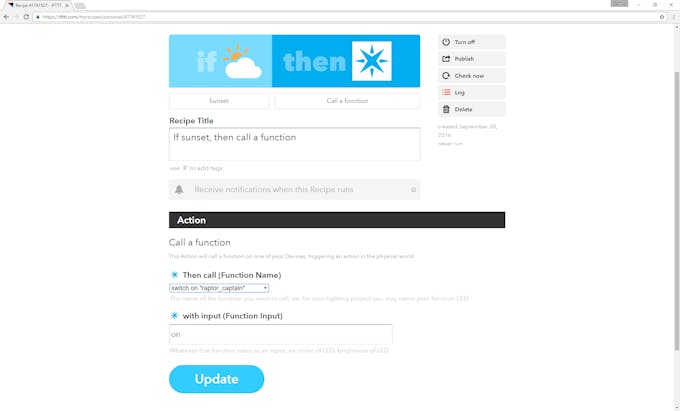

IFTTT
Hand tools and fabrication machines:
Screwdriver - Flat

Schematics

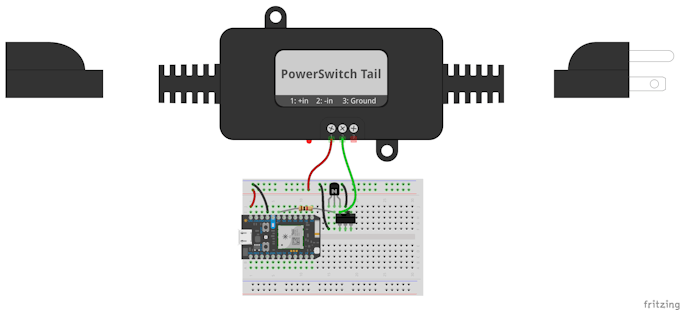

IFTTT-On-Off Fritzing Diagram
Hack Your Home Part 2.fzz

Code

IFTTT-On-OffArduino
Paste this into a build.particle.io app.
int pst = D6;

void setup() {

    // I/O as output
    pinMode(pst, OUTPUT);

    // Register a cloud function
    Particle.function("switch", pinSwitch);
}

void loop() {

}

int pinSwitch(String state) {

    // Set pin state based on given parameters
    if ( state == "on" ) {
        digitalWrite(pst, HIGH);
    } else if ( state == "off" ) {
        digitalWrite(pst, LOW);
    } else {
        return -1;
    }

    return 0;
}

Credits

Engineering superhero
Shawn hymel
5 projects • 58 followers
Engineering Superhero at SparkFun Electronics.
