Things used in this project

Hardware components:
Photon new
Particle Photon
×1
Mfr 25frf52 10k sml
Resistor 10k ohm
×1
Mfr 25fbf52 221r sml
Resistor 221 ohm
×1
10988 01
Temperature Sensor
×1
Mfr 25fbf52 2k21 sml
Resistor 2.21k ohm
×1
Panasonic eca2am101
Capacitor 100 µF
×1
Fairchild semiconductor pn2222abu. image
General Purpose Transistor NPN
×2
Fairchild semiconductor 1n4004. image
1N4007 – High Voltage, High Current Rated Diode
×2
Mfr 25fbf52 4k75 sml
Resistor 4.75k ohm
×1
Relay (generic)
×1
12002 04
Breadboard (generic)
×1
11026 02
Jumper wires (generic)
×1
Software apps and online services:
Q8wtlimqnp04fzhtr9v5
IFTTT Maker service

Schematics

Breadboard View of Circuit
K4q3inpqo08cwzujwigo

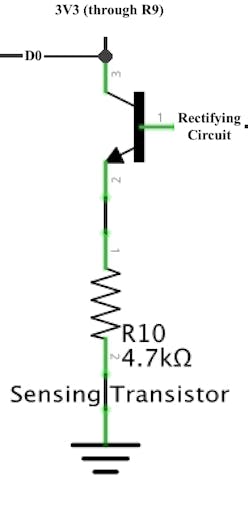

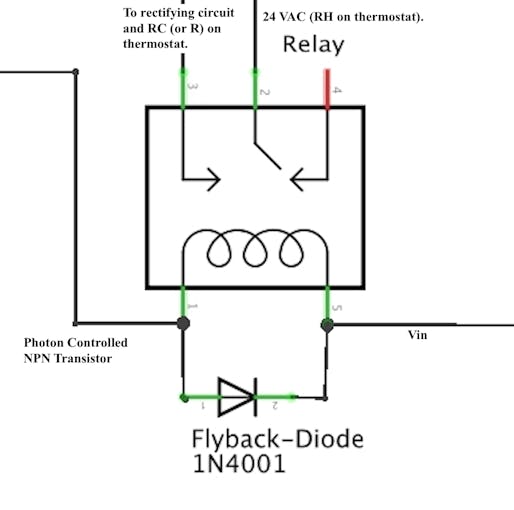

Schematic
B2qodyjj5lr7uyb40vfa

Code

GATEKEEPER.INOC/C++
This code includes the conversation outline necessary to decide with thermostat is allowed to run. This code runs on both Photons involved.
// This #include statement was automatically added by the Particle IDE.
#include "OneWire/OneWire.h"

OneWire ds = OneWire(D4);  // 1-wire signal on pin D4

String localDataString; // strings that will be populated for personal datalogging
String foreignDataString;
String prevLocalData;
String prevForeignData;

int setPoint;
int error = 0;

int myTemp; // This is the local temperature
int myDev; // Calculated deviation from setpoint
bool myCall = false; // Whether or not the thermostat is trying to turn on
bool myRun = false; // whether the ac is allowed to run
int myPriority; // status of priority
int myReq; // used to request priority from foreign member
int myAns; // used to answer requests from foreign memeber

bool prevRun; // used to decide when to activate timer
int prevTemp; // used for error-checking

// variables from foreign member that mirror local data
int forTemp;
int forDev;
bool forCall;
bool forRun;
bool forPriority;
int forReq;
int forAns;
int forTimer;

Timer oneMin(30000, everyMinute);
Timer thirtyMinutes(1800000, thirtyMinutesPassed, true);

SYSTEM_MODE(AUTOMATIC);

void setup() {

    Serial.begin(9600);

    setPoint = 75;

    oneMin.start(); // start the timer that calls the function for posting logged data

    pinMode(D7, OUTPUT); // Relay (LOW = block)
    pinMode(D0, INPUT_PULLUP); // Thermostat call (LOW = no call)
    pinMode(D2, OUTPUT);

    digitalWrite(D2, HIGH);

    // Each unit will send publish different types of data, but they will be in a single subscribed event
    // Since these events are public, a random 8-digit number is assigned to each member in the system for uniqueness for event name
    // letter at the end of even name discerns the two photons
    Particle.subscribe("32420324_A", foreignDataHandler);

    // Monitor variables for debugging
    Particle.variable("myRun", myRun);
    Particle.variable("Temperature", myTemp);
}

void loop() {

    //int callState = digitalRead(D0);
    if (digitalRead(D0) == LOW) {
        myCall = false;
    }
    else if (digitalRead(D0) == HIGH) {
        myCall = true;
    }

    if (myPriority == 0) {
        digitalWrite(D7, LOW);
        myRun = 0;
        delay(50);
    }

    if (myRun == true) {
        digitalWrite(D0, HIGH); // activate relay to AC signal
    }
    else digitalWrite(D0, LOW); // de-activate relay to AC signal

    // When something in the local or foreign data string changes, it is published
    if (strcmp(prevLocalData,localDataString) != 0) {
        Particle.publish("local_GateKeeper", localDataString, PRIVATE);
        delay(500);
    }

    if (strcmp(prevForeignData,foreignDataString) != 0) {
        Particle.publish("Foreign_GateKeeper", foreignDataString, PRIVATE);
        delay(500);
    }

    // comparison values for next loop
    prevLocalData = localDataString;
    prevForeignData = foreignDataString;
}

void everyMinute() {

    // Get current temperature and then println
    // getCurrentTemp returns nothing, but sets varaible temperature in the function
    getCurrentTemp();
    delay(50);

    while (error == 1) {
        getCurrentTemp();
        delay(50);
    }

    // Calculates and prints the current setpoint deviation
    // Will be used for priority assignment
    myDev = abs(myTemp - setPoint);

    /**************************************************Requests******************************************/
    // local thermostat calls to run, but isnt running
    if (myCall == true && myRun == false) {
        if (myPriority == false) {
            if (forAns == 0 || forAns == -1) {
                myReq = 1; //make request - ask if it's okay to turn on
            }
            //foreign member approves local priority
            else if (forAns == 1) {
                myPriority = true;
                myReq = 0; // answer received, no more asking
            }
        }
        else {
            myRun = true; // if local already has priority
            myReq = 0; // if local has priority, no need for requests
        }
    }

    // if local thermostat is idle
    if (myCall == false) {
        myReq = 0;
        myRun = false;
    }

    // Check for okay to start running the AC
    if (myRun == true && myPriority == true) {
        myReq = 0;
        if (prevRun == false && myRun == true) {
            thirtyMinutes.start(); //thiry minute timer starts
        }
    }

    // Put together the data to be published
    // Tilde acts as a delimiter so all data can be published in a single string and broken apart later
    localDataString = String(myTemp) + "~" + String(myDev) + "~" + String(myCall) + "~" + String(myRun) + "~" + String(myPriority) + "~" + String(myReq) + "~" + String(myAns) + "~" + String(thirtyMinutes.isActive());

    Particle.publish("32420324_E", localDataString);
    delay(500);


    prevRun = myRun;
}

// Code copied from ONEWIRE library to read temperature from single-wire temperature probe
// Much of the troubleshooting println commands have been commented out
void getCurrentTemp() {

  byte i;
  byte present = 0;
  byte type_s;
  byte data[12];
  byte addr[8];
  float celsius, fahrenheit;
  float lastTemp;

  if ( !ds.search(addr)) {
    //Serial.println("No more addresses.");
    //Serial.println();
    ds.reset_search();
    delay(250);
    return;
  }

  // The order is changed a bit in this example
  // first the returned address is printed

  //Serial.print("ROM =");
  for( i = 0; i < 8; i++) {
    //Serial.write(' ');
    //Serial.print(addr[i], HEX);
  }

  // second the CRC is checked, on fail,
  // print error and just return to try again

  if (OneWire::crc8(addr, 7) != addr[7]) {
      Serial.println("CRC is not valid!");
      return;
  }
  Serial.println();

  // we have a good address at this point
  // what kind of chip do we have?
  // we will set a type_s value for known types or just return

  // the first ROM byte indicates which chip
  switch (addr[0]) {
    case 0x10:
      //Serial.println("  Chip = DS1820/DS18S20");
      type_s = 1;
      break;
    case 0x28:
     // Serial.println("  Chip = DS18B20");
      type_s = 0;
      break;
    case 0x22:
      //Serial.println("  Chip = DS1822");
      type_s = 0;
      break;
    case 0x26:
      //Serial.println("  Chip = DS2438");
      type_s = 2;
      break;
    default:
      //Serial.println("Unknown device type.");
      return;
  }

  // this device has temp so let's read it

  ds.reset();               // first clear the 1-wire bus
  ds.select(addr);          // now select the device we just found
  // ds.write(0x44, 1);     // tell it to start a conversion, with parasite power on at the end
  ds.write(0x44, 0);        // or start conversion in powered mode (bus finishes low)

  // just wait a second while the conversion takes place
  // different chips have different conversion times, check the specs, 1 sec is worse case + 250ms
  // you could also communicate with other devices if you like but you would need
  // to already know their address to select them.

  delay(1000);     // maybe 750ms is enough, maybe not, wait 1 sec for conversion

  // we might do a ds.depower() (parasite) here, but the reset will take care of it.

  // first make sure current values are in the scratch pad

  present = ds.reset();
  ds.select(addr);
  ds.write(0xB8,0);         // Recall Memory 0
  ds.write(0x00,0);         // Recall Memory 0

  // now read the scratch pad

  present = ds.reset();
  ds.select(addr);
  ds.write(0xBE,0);         // Read Scratchpad
  if (type_s == 2) {
    ds.write(0x00,0);       // The DS2438 needs a page# to read
  }

  // transfer and print the values

  //Serial.print("  Data = ");
  //Serial.print(present, HEX);
  //Serial.print(" ");
  for ( i = 0; i < 9; i++) {           // we need 9 bytes
    data[i] = ds.read();
    //Serial.print(data[i], HEX);
    //Serial.print(" ");
  }
  //Serial.print(" CRC=");
 // Serial.print(OneWire::crc8(data, 8), HEX);
  //Serial.println();

  // Convert the data to actual
  // because the result is a 16 bit signed integer, it should
  // be stored to an "int16_t" type, which is always 16 bits
  // even when compiled on a 32 bit processor.
  int16_t raw = (data[1] << 8) | data[0];
  if (type_s == 2) raw = (data[2] << 8) | data[1];
  byte cfg = (data[4] & 0x60);

  switch (type_s) {
    case 1:
      raw = raw << 3; // 9 bit resolution default
      if (data[7] == 0x10) {
        // "count remain" gives full 12 bit resolution
        raw = (raw & 0xFFF0) + 12 - data[6];
      }
      celsius = (float)raw * 0.0625;
      break;
    case 0:
      // at lower res, the low bits are undefined, so let's zero them
      if (cfg == 0x00) raw = raw & ~7;  // 9 bit resolution, 93.75 ms
      if (cfg == 0x20) raw = raw & ~3; // 10 bit res, 187.5 ms
      if (cfg == 0x40) raw = raw & ~1; // 11 bit res, 375 ms
      // default is 12 bit resolution, 750 ms conversion time
      celsius = (float)raw * 0.0625;
      break;

    case 2:
      data[1] = (data[1] >> 3) & 0x1f;
      if (data[2] > 127) {
        celsius = (float)data[2] - ((float)data[1] * .03125);
      }else{
        celsius = (float)data[2] + ((float)data[1] * .03125);
      }
  }

  // remove random errors
  if((((celsius <= 0 && celsius > -1) && lastTemp > 5)) || celsius > 125) {
      celsius = lastTemp;
  }

  fahrenheit = celsius * 1.8 + 32.0;
  lastTemp = celsius;

  /*
  Serial.print("  Temperature = ");
  Serial.print(celsius);
  Serial.print(" Celsius, ");
  Serial.print(fahrenheit);
  Serial.println(" Fahrenheit");
  */

  // now that we have the readings, we can publish them to the cloud
  String temp = String(fahrenheit); // store temp in "temperature" string

  myTemp = temp.toInt();
  delay(100);


  if (myTemp == 0) {
      error = 1;
  }
  else error = 0;

  /* in case of errorneous temperature reading
   * a temperature shift of 8 degrees means the reading is wrong or a ghost entered the room
   * either way, the temperature is not indicitive
   */
   if (abs(myTemp - prevTemp) >= 10 && prevTemp != 0) {
      myTemp = prevTemp;
  }

  // set the comparison variable for next cycle
  prevTemp = myTemp;

}

// Break the recieved data into usable parts
void foreignDataHandler(const char *event, const char *data) {

    String string = data;
    String eventName = event;
    String mydata[10];
    int end;

    for (int i = 0; i < 10; i++) {

        end = string.indexOf("~");

        if (end != -1) {
            mydata[i] = string.substring(0,end);
            Serial.println(eventName + "-" + String(i) + ": " + mydata[i]);
            string.remove(0,end + 1);
        }
        else {
            mydata[i] = string;
            Serial.println(eventName + "-" + String(i) + ": " + mydata[i]);
            goto here;
        }
    }

    here:

    forTemp = mydata[0].toInt();
    forDev = mydata[1].toInt();

    switch (mydata[2].toInt()) {
        case 0:
            forCall = false;
            break;
        case 1:
            forCall = true;
            break;
        default:
            break;
    }

    switch (mydata[3].toInt()) {
        case 0:
            forRun = false;
            break;
        case 1:
            forRun = true;
            break;
        default:
            break;
    }

    switch (mydata[4].toInt()) {
        case 0:
            forPriority = false;
            break;
        case 1:
            forPriority = true;
            break;
        default:
            break;
    }

    forReq = mydata[5].toInt();
    forAns = mydata[6].toInt();
    forTimer = mydata[7].toInt();

    foreignDataString = String(forTemp) + "~" + String(forDev) + "~" + String(forCall) + "~" + String(forRun) + "~" + String(forPriority) + "~" + String(forReq) + "~" + String(forAns) + "~" + String(forTimer);
    delay(500);

    // When foreign member requests to turn on
    if (forReq == 1) {
        if (myCall == false) {
            myAns = 1; // answer is yes, foreign house AC is not running
            myPriority = false;
            thirtyMinutes.stop();// local reliquishes priority
            goto skipAhead;
        }

        if (thirtyMinutes.isActive() == true) {
            myAns = 0; // the answer is no, to prevent rapid cycling
            myPriority = true; // local retains priority
        }
        else if (thirtyMinutes.isActive() == true && myCall == false) {
            myAns = 1;
            myPriority = false;
            thirtyMinutes.stop();
        }
        else {
            if (myDev > forDev) {
                myAns = 0; // the answer is no, my house is less comfortable than yours
                myPriority = true; // local retains priority
            }
            else {
                myAns = 1;
                myPriority = false;
            }
        }
    }
    else if (forReq == 0) {
        myAns = 0; // no need to answer a question that isn't being asked
    }
    skipAhead:

    // In the event that both decided that they have priority to run, this block clears that so they can start over
    if (myPriority == true && forPriority == true) {
        myPriority = false;
        myRun = false;
        digitalWrite(D7, LOW);
        thirtyMinutes.stop();
    }

}

void thirtyMinutesPassed() {

}

Credits

73cf782606956514a913809e5a7675ec
Andrew De Piante

I studying Mechanical Engineering at UNC Charlotte. I enjoy the performance automotive industry and quality-driven design.

Replications

Did you replicate this project? Share it!

I made one

Love this project? Think it could be improved? Tell us what you think!

Give feedback

Comments

Similar projects you might like

Blynk GPS Tracker
Intermediate
  • 209
  • 5

Full instructions

Simple GPS tracker using a Particle Photon (or Electron) and an EM406 GPS module with location visible on Blynk app map.

Pool Buddy
Intermediate
  • 1,818
  • 11

Work in progress

Monitor and log water quality (pH & ORP) and temperature from everywhere.

IoT Thermometer Using Python
Intermediate
  • 1,166
  • 10

Full instructions

How to develop a simple but powerful IoT thermometer using a Zerynth-powered single-board MCU and the Zerynth App.

Particle Photon Flip Dot Clock
Intermediate
  • 2,207
  • 31

Full instructions

The flip dot display uses an electromechanical dot matrix that spin from black to yellow to display text, numbers and more!

Do You Know How Your Plants Are Feeling? [Particle+Ubidots]
Intermediate
  • 186
  • 4

Full instructions

Build and deploy a soil moisture and temperature sensor for commercial greenhouses or private garden monitoring and treatment.

Patriot iOS App
Intermediate
  • 560
  • 9

Use an old iPhone device to control and display the status of your Patriot IoT devices.

Patriot iOS App

Team Patriot

Add projectSign up / Login
