WiSor - The Wireless Sensor Hub

A new way to connect sensors! Connect up to five sensors to the particle powered WiSor and obtain real-time data on your mobile phone!

IntermediateFull instructions provided5 hours800
WiSor - The Wireless Sensor Hub

Things used in this project

Hardware components

Photon
Particle Photon
×1
4xAA battery holder
4xAA battery holder
To power the photon
×1
Mouser switch
To switch on/off the particle photon.
×1
Linear Regulator (7805)
Linear Regulator (7805)
To provide steady 5V to the photon
×1
Jumper wires (generic)
Jumper wires (generic)
for connections
×1
AA Batteries
AA Batteries
powering the WiSor
×1
LED (generic)
LED (generic)
Indicator that the device is ON
×1
DHT11 Temperature & Humidity Sensor
DHT11 Temperature & Humidity Sensor
For testing the Hub
×1

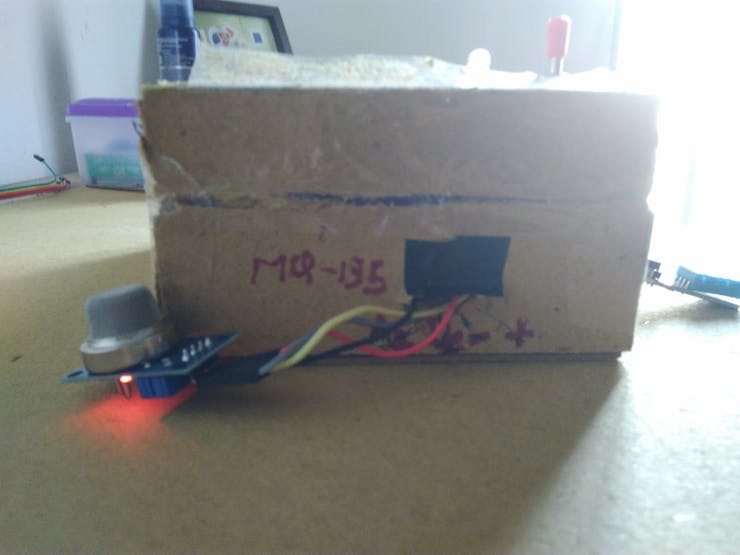

Grove - Air quality sensor v1.3
Seeed Grove - Air quality sensor v1.3
For testing the Hub
×1

Software apps and online services

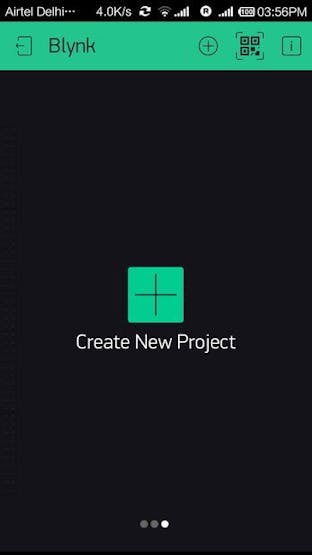

Blynk
Blynk
Particle Build

Story

Read more

Schematics

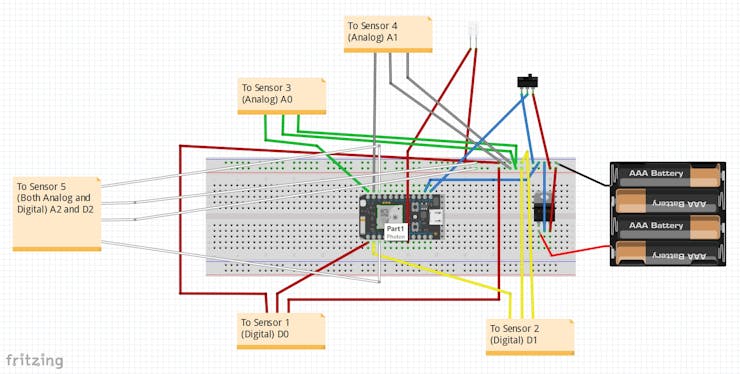

WiSor schematic

The Schematic diagram for WiSor.

Code

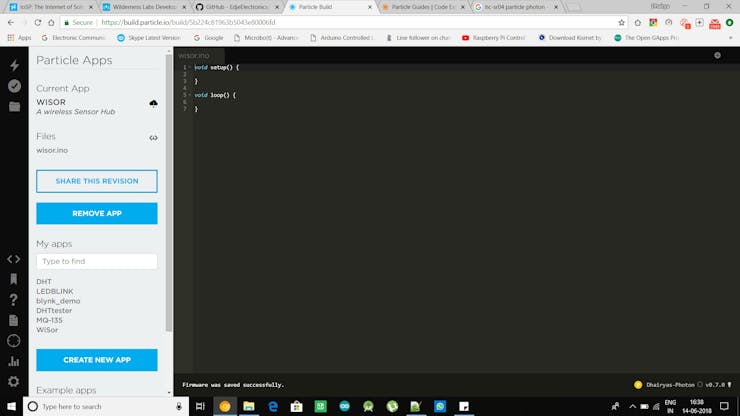

The Particle Build code

C/C++
The Code for WiSor

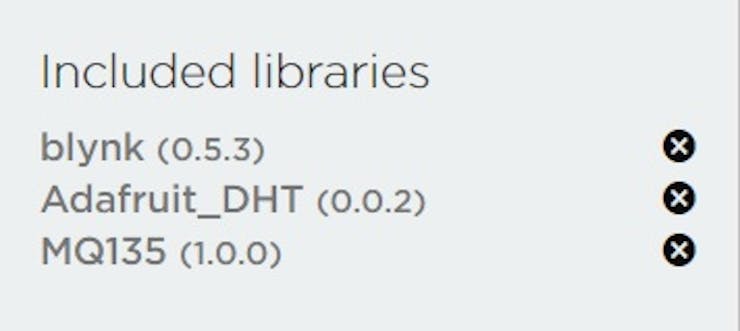

#include <Adafruit_DHT.h>
#include "Adafruit_DHT/Adafruit_DHT.h"
#include "SPI.h"
#include "blynk.h"
#include "MQ135.h"

// DHT parameters
#define DHTPIN 1
#define DHTTYPE DHT11
#define BLYNK_PRINT Serial

// Variables
int temperature;
int humidity;
int boardLed = D7;
int number = 0;
int state = 0;
MQ135 gasSensor = MQ135(2);
float rzero = gasSensor.getRZero();
int ppm = gasSensor.getPPM();
// DHT sensor
DHT dht(DHTPIN, DHTTYPE);
char auth[] = "your authentication code";
void setup()
{
    pinMode(boardLed,OUTPUT); // Our on-board LED is output as well
    Serial.begin(9600);
    Blynk.begin(auth);
    // Start DHT sensor
    dht.begin();

}

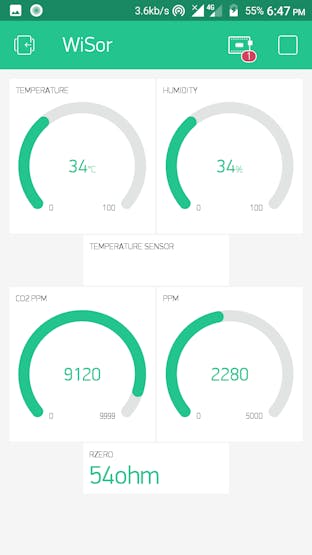

void loop()
{
    Blynk.run();
    int co2_ppm = gasSensor.getPPM();
    int ppm = co2_ppm / 4;
    digitalWrite(boardLed,HIGH); //indicator LED on WiSor turns on
     // Humidity measurement
    temperature = dht.getTempCelcius();

    // Humidity measurement
    humidity = dht.getHumidity();
     //virtual pin 1 will be the temperature
  Blynk.virtualWrite(V1, temperature);
   //virtual pin 2 will be the Humidity
  Blynk.virtualWrite(V2, humidity);
    //virtual pin 3 will be the ppm value of CO2 gas
  Blynk.virtualWrite(V3, co2_ppm);
    //virtual pin 4 will be the final ppm value
  Blynk.virtualWrite(V4, ppm);
    //virtual pin 5 will be the temperature
  Blynk.virtualWrite(V5, int(rzero));

}
