IoT Camera Mover for Less Than $35

Build a machine that can move a camera perfectly using the power of a webpage and even the Google Assistant with Particle.

IntermediateWork in progress3 hours1,363
IoT Camera Mover for Less Than $35

Things used in this project

Hardware components

Photon
Particle Photon
×1
NEMA 17 Stepper Motor
OpenBuilds NEMA 17 Stepper Motor
×1
Driver DRV8825 for Stepper Motors for Theremino System
Driver DRV8825 for Stepper Motors for Theremino System
×1
Stepper Motor Mounting Plate NEMA 17
×1
1/2 inch PVC Pipe 5 feet
×1
1 inch x 4 inch x 4 foot lumber
×1

Software apps and online services

Particle Cloud IDE

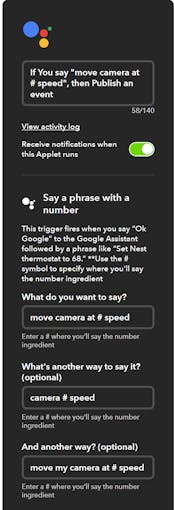

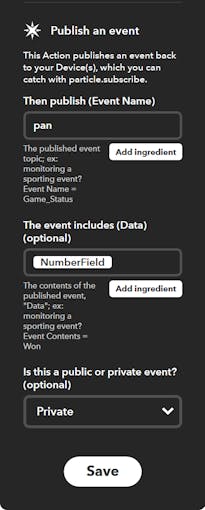

IFTTT - Google Assistant Service

Hand tools and fabrication machines

Hacksaw
3D Printer (generic)
3D Printer (generic)

Story

Read more

Custom parts and enclosures

Camera Platform

Schematics

Schematic

Schematic bb ulzca0tklx

Code

Particle Code

C/C++
// This #include statement was automatically added by the Particle IDE.
#include <AccelStepper.h>

void pan(const char *event, const char *data);

AccelStepper pan_stepper(1,2,3); //Driver mode, STEP pin 2, DIR pin 3

#define MIDPOINT 1200

void setup() {
    Particle.subscribe("pan",pan, MY_DEVICES);
    Particle.subscribe("set_accel",accel, MY_DEVICES);
    pinMode(2,OUTPUT);
    pinMode(3,OUTPUT);
    pan_stepper.setMaxSpeed(501);
    pan_stepper.setSpeed(75);
    pan_stepper.setAcceleration(75);
}

void loop() {

}

void pan(const char *event, const char *data){
    pan_stepper.setSpeed(String(data).toInt());
    if(int(data)>10){
    pan_stepper.move(MIDPOINT*2);
    pan_stepper.runToPosition();
    delay(3000);
    pan_stepper.move(-MIDPOINT*2);
    pan_stepper.runToPosition();
    }
}

void accel(const char *event, const char *data){
    pan_stepper.setAcceleration(String(data).toInt());
}

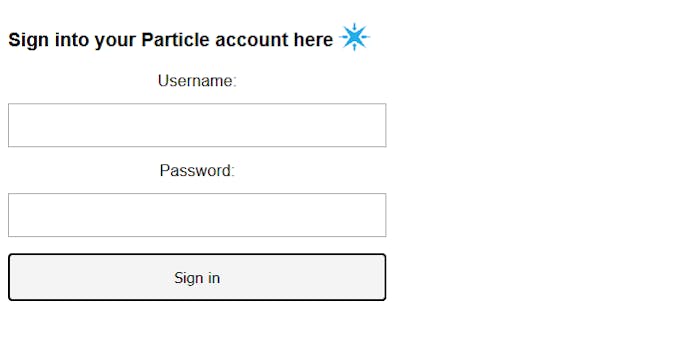

Webpage Page

HTML
<!DOCTYPE html>

<head>
	<title>Camera Controller</title>
	<script type="text/javascript" src="//cdn.jsdelivr.net/particle-api-js/5/particle.min.js"></script>
	<script type="text/javascript" src="photon_control.js"></script>
	<meta name="viewport" content="width=device-width, initial-scale=1.0">
	<link rel=stylesheet type="text/css" href="cam_control.css">
</head>
<body>
<div id="sign-in">
	<div id="sign_in_header"><h3>Sign into your Particle account here</h3>
	<img src="https://proxy.duckduckgo.com/iu/?u=https%3A%2F%2Fwww-assets.particle.io%2Fimages%2Flogo.png%3Fmtime%3D20160727114211&f=1" class="logo_img">
	</div>
	<form onsubmit="sign_in(this.user.value,this.pass.value); return false" method="post">
		<br><p class="input_label">Username: </p><input type="text" name="user"><br>
		<p class="input_label">Password: </p><input type="password" name="pass"><br>
	<input type=submit value="Sign in" class="submit_btn"><br>
	<h3 id="success_fail"></h3>
	</form>
</div>
<div id="load_devices" style="visibility: hidden">
	<input type=text id="input_txtbox"><br>
	<button value=0 class="select_btn" onclick="event_publish(this.value);return false">Pan Camera</button>
	<button value=1 class="select_btn" onclick="event_publish(this.value);return false">Set Acceleration</button><br>
	<label for="clear_chk">Keep Value</label>
	<input type="checkbox" id="clear_chk" checked="false">

</div>


</body>

Webpage Javascript

JavaScript
var particle = new Particle();
var token;

var event_names = ["pan","set_accel"];

function sign_in(user, pass){
	particle.login({username: user, password: pass}).then(
	function(data){
		token = data.body.access_token;
		var status = document.getElementById("success_fail");
		status.innerHTML = "Success";
		document.getElementById("load_devices").style.visibility = "visible";
	}, function(err){status.innerHTML="Login failed, try again"}
	);
}

function event_publish(move_setAccel){
	var data_val = document.getElementById("input_txtbox").value;
	var publishEventPr = particle.publishEvent({name: event_names[move_setAccel],data: data_val,isPrivate: true, auth:token});
	publishEventPr.then(
	function(data){
		if(data.body.ok){console.log("event published")}
	}, function(err){console.log("Failed"+err)}
	);
	if(document.getElementById("clear_chk").checked==false){
		document.getElementById("input_txtbox").value = "";
	}
}

Webpage CSS

CSS
*{
	box-sizing: border-box;

}

body{
	font-family: arial, sans-serif;
}

.logo_img{
	width: 10%;
	height: 10%;
	padding-top: 3%;
	padding-left: 4px;
}

#sign_in_header h3, #sign_in_header img{
	float: left;
}

#sign-in{
	width: 30%;
	float: left;
	margin-bottom: 10px;
	justify-content: center;
}

.input_label{
	text-align: center;
	margin: 5px;
}

#sign-in input{
	width: 100%;
	padding: 12px 20px;
	margin: 8px 0;
	box-sizing: border-box;
}

.submit_btn{
	background-color: #f4f4f4;
	border: 2px solid black;
	color: black;
	display: inline-block;
	font-size: 15px;
	border-radius: 4px;
	width: 100%;
}

.select_btn{
	background-color: #f4f4f4;
	border: 2px solid black;
	color: black;
	display: inline-block;
	font-size: 20px;
	border-radius: 2px;
	height: 40px;
	width: 30%;
}

.select_btn:hover{
	cursor: pointer;
	background-color: white;
}

label{
	font-size: 16px;
}

#clear_chk{
	-moz-transform: scale(1.3);
	padding: 10px;
	margin: 15px;
}

.submit_btn:hover{
	cursor: pointer;
	background-color: white;
}

#load_devices * {
	margin-top:5px;
	margin-bottom:10px;
}

#load_devices{
	width: 70%;
	float: left;
	text-align: center;
	padding: 16px 18px;
	margin-top:10%;
	margin-bottom:5px;
	height: 40%;
}

#load_devices input{
	padding: 12px 14px;
	font-size: 16px;
}


#load_devices input[type=text] {
	width: 60%;
}

#success_fail{
	color: limegreen;
}
