Things used in this project

Hardware components:
Photon new
Particle Photon
×1
11026 02
Jumper wires (generic)
×1
AAA batteries
×3
Omron b3f 1000 image 75px
Tactile Button Switch (6mm) Single
×1
Mfr 25frf52 10k sml
Resistor 10k ohm
×1
Mfr 25fbf52 221r sml
Resistor 221 ohm
×1
Software apps and online services:
Particle.io IDE

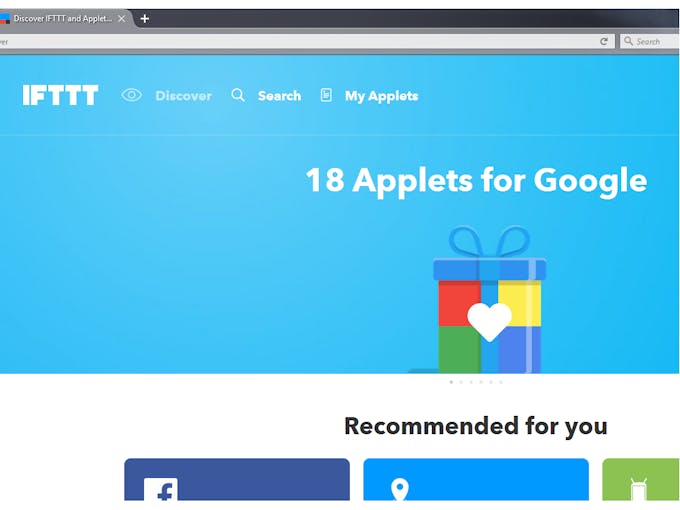

IFFFT
Hand tools and fabrication machines:
3drag
3D Printer (generic)

Custom parts and enclosures

Doorbell Upper
3D print it
Doorbell Lower
3D print it

Schematics

Schematic
Schematic bb 6jo2genedi

Code

CodeC/C++
int LED = 5;
int button = 1;
bool state = false;

void setup() {
pinMode(LED,OUTPUT);
pinMode(button,INPUT);
//attachInterrupt(D1,rung,FALLING);
digitalWrite(LED,HIGH);
delay(2000);
digitalWrite(LED,LOW);
}

void loop() {
    state = digitalRead(button);
    if(state == false){
       blink();
       state = false;
    }
    else{
    rung();
    state = false;
    }
}

void blink(){
    digitalWrite(LED,HIGH);
    delay(200);
    digitalWrite(LED,LOW);
    delay(200);
}
void rung(){
    Particle.publish("doorbell","HIGH",PUBLIC);
    digitalWrite(LED,HIGH);
    delay(5000);
    digitalWrite(LED,LOW);
}

Credits

Download
Arduino “having11” Guy

I love creating cloud solutions that can interact with hardware along with using Arduino boards and Raspberry Pis to create new projects.
