Alex Feng
Published © GPL3+

Machine Learning Smart Home

Make a machine learning smart home that adapts to how you control your lights.

IntermediateFull instructions provided2.5 hours670
Machine Learning Smart Home

Things used in this project

Hardware components

Argon
Particle Argon
Any Particle board will work for this project
×1

Software apps and online services

Microsoft Azure
Microsoft Azure

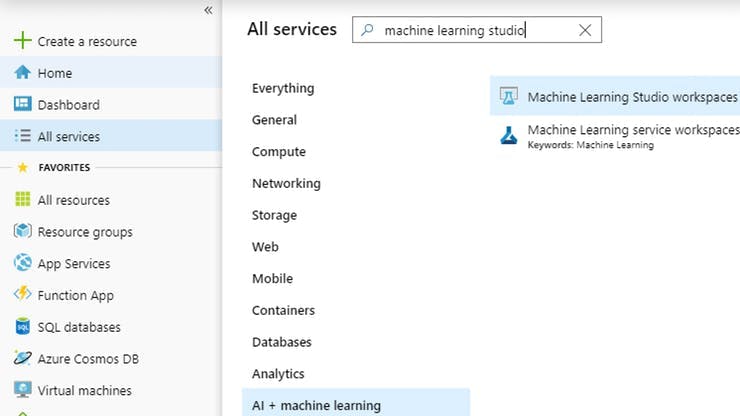

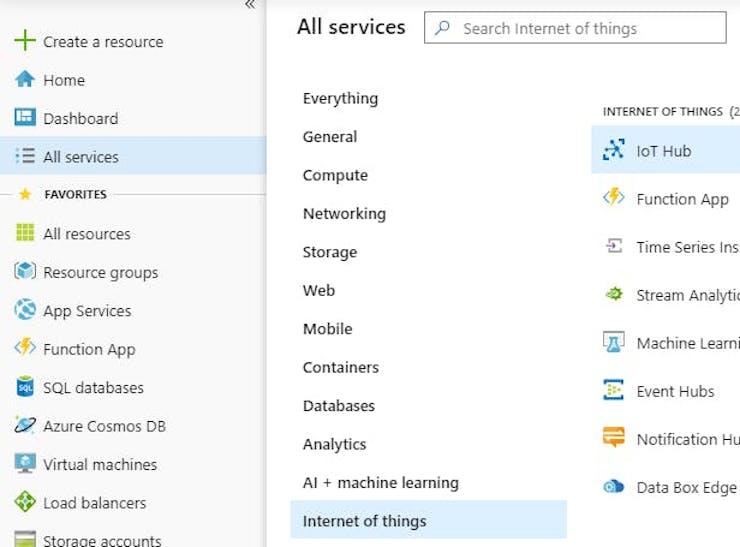

Machine Learning Studio, IoT Hub, Event Hub, Logic App, Automations
Particle Build Web IDE
Particle Build Web IDE
Use the desktop IDE

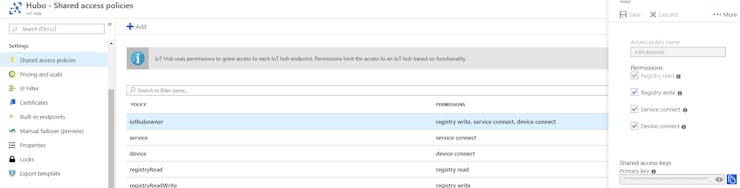

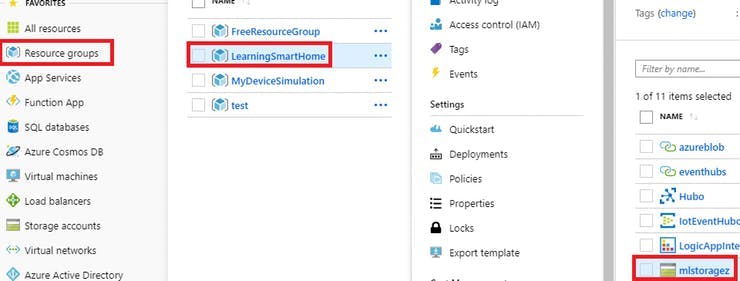

Story

Read more

Code

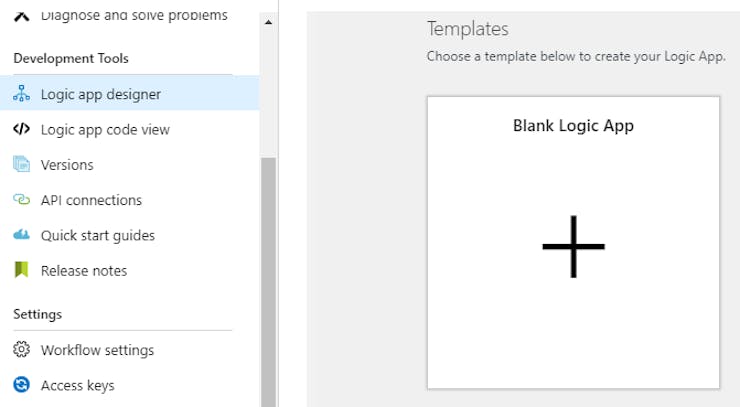

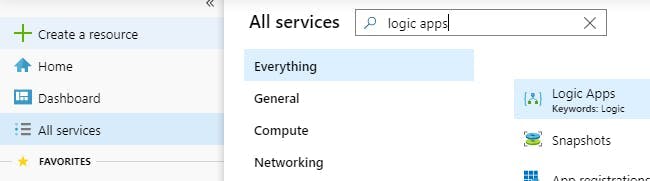

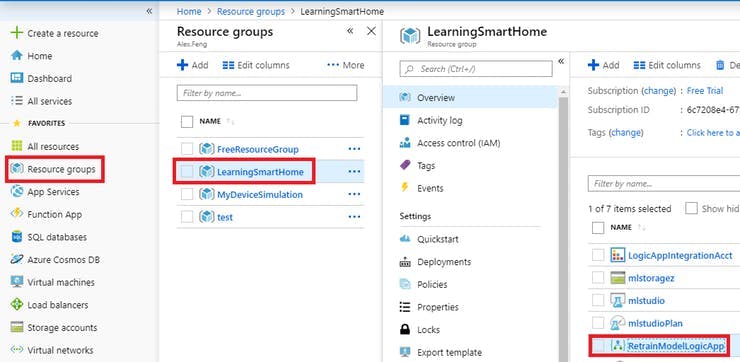

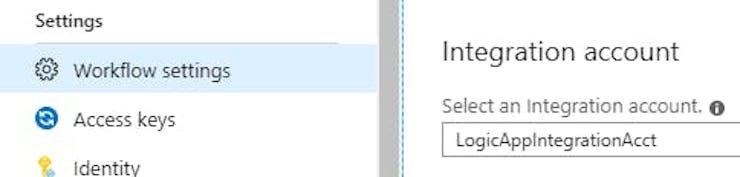

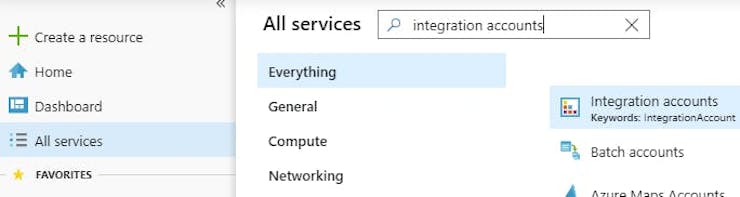

LogicApp.json

JSON
{
    "$connections": {
        "value": {
            "azureautomation": {
                "connectionId": "/subscriptions/<YOUR SUBSCRIPTION ID>/resourceGroups/<RESOURCE GROUP>/providers/Microsoft.Web/connections/azureautomation",
                "connectionName": "azureautomation",
                "id": "/subscriptions/<YOUR SUBSCRIPTION ID>/providers/Microsoft.Web/locations/<LOCATION>/managedApis/azureautomation"
            },
            "azureblob": {
                "connectionId": "/subscriptions/<YOUR SUBSCRIPTION ID>/resourceGroups/<RESOURCE GROUP>/providers/Microsoft.Web/connections/azureblob",
                "connectionName": "azureblob",
                "id": "/subscriptions/<YOUR SUBSCRIPTION ID>/providers/Microsoft.Web/locations/<LOCATION>/managedApis/azureblob"
            },
            "azureeventgrid": {
                "connectionId": "/subscriptions/<YOUR SUBSCRIPTION ID>/resourceGroups/<RESOURCE GROUP>/providers/Microsoft.Web/connections/azureeventgrid",
                "connectionName": "azureeventgrid",
                "id": "/subscriptions/<YOUR SUBSCRIPTION ID>/providers/Microsoft.Web/locations/<LOCATION>/managedApis/azureeventgrid"
            },
            "plumsail": {
                "connectionId": "/subscriptions/<YOUR SUBSCRIPTION ID>/resourceGroups/<RESOURCE GROUP>/providers/Microsoft.Web/connections/plumsail",
                "connectionName": "plumsail",
                "id": "/subscriptions/<YOUR SUBSCRIPTION ID>/providers/Microsoft.Web/locations/<LOCATION>/managedApis/plumsail"
            }
        }
    },
    "definition": {
        "$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
        "actions": {
            "Create_CSV_table": {
                "inputs": {
                    "format": "CSV",
                    "from": "@variables('data')"
                },
                "runAfter": {
                    "For_each": [
                        "Succeeded"
                    ]
                },
                "type": "Table"
            },
            "Create_job": {
                "inputs": {
                    "host": {
                        "connection": {
                            "name": "@parameters('$connections')['azureautomation']['connectionId']"
                        }
                    },
                    "method": "put",
                    "path": "/subscriptions/@{encodeURIComponent('<YOUR SUBSCRIPTION ID>')}/resourceGroups/@{encodeURIComponent('<RESOURCE GROUP>')}/providers/Microsoft.Automation/automationAccounts/@{encodeURIComponent('<AUTOMATION NAME>')}/jobs",
                    "queries": {
                        "runbookName": "ExportWebService",
                        "wait": true,
                        "x-ms-api-version": "2015-10-31"
                    }
                },
                "runAfter": {
                    "Delay": [
                        "Succeeded"
                    ]
                },
                "type": "ApiConnection"
            },
            "Create_job_2": {
                "inputs": {
                    "body": {
                        "properties": {
                            "parameters": {
                                "wsd": "@variables('webServiceDef')"
                            }
                        }
                    },
                    "host": {
                        "connection": {
                            "name": "@parameters('$connections')['azureautomation']['connectionId']"
                        }
                    },
                    "method": "put",
                    "path": "/subscriptions/@{encodeURIComponent('<YOUR SUBSCRIPTION ID>')}/resourceGroups/@{encodeURIComponent('<RESOURCE GROUP>')}/providers/Microsoft.Automation/automationAccounts/@{encodeURIComponent('<AUTOMATION NAME>')}/jobs",
                    "queries": {
                        "runbookName": "ImportWebService",
                        "wait": true,
                        "x-ms-api-version": "2015-10-31"
                    }
                },
                "runAfter": {
                    "Set_variable_2": [
                        "Succeeded"
                    ]
                },
                "type": "ApiConnection"
            },
            "Delay": {
                "inputs": {
                    "interval": {
                        "count": 1,
                        "unit": "Minute"
                    }
                },
                "runAfter": {
                    "HTTP_2": [
                        "Succeeded"
                    ]
                },
                "type": "Wait"
            },
            "Execute_JavaScript_Code": {
                "inputs": {
                    "code": "var oldData = workflowContext.actions.Parse_CSV.outputs.body\r\noldData.shift();\r\n\r\nvar fixedData = [];\r\n\r\nfor(var i=0; i<oldData.length; i++){\r\n    var fixedItem = {}\r\n    fixedItem.Hour = parseInt(oldData[i].Hour, 10);\r\n    fixedItem.Brightness = parseInt(oldData[i].Brightness, 10);\r\n    fixedData.push(fixedItem);\r\n}\r\n\r\nreturn fixedData;"
                },
                "runAfter": {
                    "Initialize_variable": [
                        "Succeeded"
                    ]
                },
                "type": "JavaScriptCode"
            },
            "Execute_JavaScript_Code_2": {
                "inputs": {
                    "code": "var telemData = workflowContext.trigger.outputs.body\r\nvar data = JSON.parse(telemData.data.body.data);\r\ndata = data.data;\r\n\r\nvar formatTelemData = [];\r\n\r\nfor(var i=0; i<data.length; i++){\r\n    var item = {};\r\n    item.Hour = i;\r\n    item.Brightness = data[i];\r\n    formatTelemData.push(item);\r\n}\r\n\r\nreturn formatTelemData;"
                },
                "runAfter": {
                    "Initialize_variable_3": [
                        "Succeeded"
                    ]
                },
                "type": "JavaScriptCode"
            },
            "Execute_JavaScript_Code_3": {
                "inputs": {
                    "code": "var webDefinition = workflowContext.actions.Get_job_output.outputs.body;\r\n\r\nvar updatedWebDefinition = JSON.parse(webDefinition);\r\nupdatedWebDefinition.properties.assets.asset2.locationInfo.uri = \"https://<STORAGE NAME>.blob.core.windows.net/<STORAGE CONTAINER>/training/output1results.ilearner\";\r\n\r\nvar returnData = JSON.stringify(updatedWebDefinition);\r\n\r\nreturn returnData;"
                },
                "runAfter": {
                    "Initialize_variable_2": [
                        "Succeeded"
                    ]
                },
                "type": "JavaScriptCode"
            },
            "For_each": {
                "actions": {
                    "Append_to_array_variable_2": {
                        "inputs": {
                            "name": "data",
                            "value": "@items('For_each')"
                        },
                        "runAfter": {},
                        "type": "AppendToArrayVariable"
                    }
                },
                "foreach": "@variables('newData')",
                "runAfter": {
                    "Set_variable": [
                        "Succeeded"
                    ],
                    "Set_variable_3": [
                        "Succeeded"
                    ]
                },
                "type": "Foreach"
            },

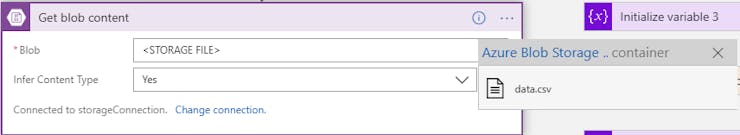

            "Get_blob_content": {
                "inputs": {
                    "host": {
                        "connection": {
                            "name": "@parameters('$connections')['azureblob']['connectionId']"
                        }
                    },
                    "method": "get",
                    "path": "/datasets/default/files/@{encodeURIComponent(encodeURIComponent('<STORAGE FILE>'))}/content",
                    "queries": {
                        "inferContentType": true
                    }
                },
                "runAfter": {},
                "type": "ApiConnection"
            },
            "Get_job_output": {
                "inputs": {
                    "host": {
                        "connection": {
                            "name": "@parameters('$connections')['azureautomation']['connectionId']"
                        }
                    },
                    "method": "get",
                    "path": "/subscriptions/@{encodeURIComponent('<YOUR SUBSCRIPTION ID>')}/resourceGroups/@{encodeURIComponent('<RESOURCE GROUP>')}/providers/Microsoft.Automation/automationAccounts/@{encodeURIComponent('<AUTOMATION NAME>')}/jobs/@{encodeURIComponent(body('Create_job')?['properties']?['jobId'])}/output",
                    "queries": {
                        "x-ms-api-version": "2015-10-31"
                    }
                },
                "runAfter": {
                    "Create_job": [
                        "Succeeded"
                    ]
                },
                "type": "ApiConnection"
            },
            "Get_job_output_2": {
                "inputs": {
                    "host": {
                        "connection": {
                            "name": "@parameters('$connections')['azureautomation']['connectionId']"
                        }
                    },
                    "method": "get",
                    "path": "/subscriptions/@{encodeURIComponent('<YOUR SUBSCRIPTION ID>')}/resourceGroups/@{encodeURIComponent('<RESOURCE GROUP>')}/providers/Microsoft.Automation/automationAccounts/@{encodeURIComponent('<AUTOMATION NAME>')}/jobs/@{encodeURIComponent(body('Create_job_2')?['properties']?['jobId'])}/output",
                    "queries": {
                        "x-ms-api-version": "2015-10-31"
                    }
                },
                "runAfter": {
                    "Create_job_2": [
                        "Succeeded"
                    ]
                },
                "type": "ApiConnection"
            },

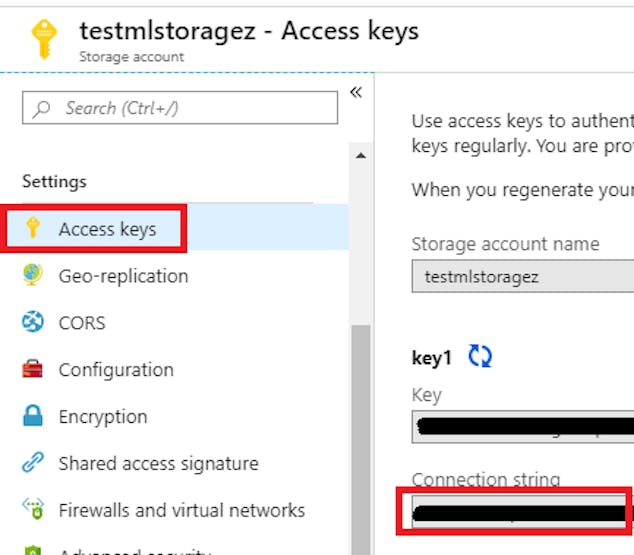

            "HTTP": {
                "inputs": {
                    "body": {
                        "GlobalParameters": {},
                        "Inputs": {
                            "input1": {
                                "BaseLocation": "https://<STORAGE NAME>.blob.core.windows.net/",
                                "ConnectionString": "<STORAGE CONNECT STRING>",
                                "RelativeLocation": "<STORAGE CONTAINER>/data.csv"
                            }
                        },
                        "Outputs": {
                            "output1": {
                                "BaseLocation": "https://<STORAGE NAME>.blob.core.windows.net/",
                                "ConnectionString": "<STORAGE CONNECT STRING>",
                                "RelativeLocation": "<STORAGE CONTAINER>/training/output1results.ilearner"
                            },
                            "output2": {
                                "BaseLocation": "https://<STORAGE NAME>.blob.core.windows.net/",
                                "ConnectionString": "<STORAGE CONNECT STRING>",
                                "RelativeLocation": "<STORAGE CONTAINER>/training/output2results.csv"
                            }
                        }
                    },
                    "headers": {
                        "Authorization": "Bearer <TRAIN KEY>",
                        "Content-Type": "application/json"
                    },
                    "method": "POST",
                    "uri": "<TRAIN URL>"
                },
                "runAfter": {
                    "Update_blob": [
                        "Succeeded"
                    ]
                },
                "type": "Http"
            },
            "HTTP_2": {
                "inputs": {
                    "headers": {
                        "Authorization": "Bearer <TRAIN KEY>"
                    },
                    "method": "POST",
                    "uri": "<TRAIN URL 2>/@{body('HTTP')}/start?api-version=2.0"
                },
                "runAfter": {
                    "HTTP": [
                        "Succeeded"
                    ]
                },
                "type": "Http"
            },
            "Initialize_variable": {
                "inputs": {
                    "variables": [
                        {
                            "name": "data",
                            "type": "Array"
                        }
                    ]
                },
                "runAfter": {
                    "Parse_CSV": [
                        "Succeeded"
                    ]
                },
                "type": "InitializeVariable"
            },
            "Initialize_variable_2": {
                "inputs": {
                    "variables": [
                        {
                            "name": "webServiceDef",
                            "type": "String"
                        }
                    ]
                },
                "runAfter": {
                    "Get_job_output": [
                        "Succeeded"
                    ]
                },
                "type": "InitializeVariable"
            },
            "Initialize_variable_3": {
                "inputs": {
                    "variables": [
                        {
                            "name": "newData",
                            "type": "Array"
                        }
                    ]
                },
                "runAfter": {},
                "type": "InitializeVariable"
            },
            "Parse_CSV": {
                "inputs": {
                    "body": {
                        "content": "@{base64(body('Get_blob_content'))}",
                        "headers": "Hour,Brightness"
                    },
                    "host": {
                        "connection": {
                            "name": "@parameters('$connections')['plumsail']['connectionId']"
                        }
                    },
                    "method": "post",
                    "path": "/flow/v1/Documents/jobs/ParseCsv"
                },
                "runAfter": {
                    "Get_blob_content": [
                        "Succeeded"
                    ]
                },
                "type": "ApiConnection"
            },
            "Set_variable": {
                "inputs": {
                    "name": "data",
                    "value": "@outputs('Execute_JavaScript_Code')?['body']"
                },
                "runAfter": {
                    "Execute_JavaScript_Code": [
                        "Succeeded"
                    ]
                },
                "type": "SetVariable"
            },
            "Set_variable_2": {
                "inputs": {
                    "name": "webServiceDef",
                    "value": "@{outputs('Execute_JavaScript_Code_3')?['body']}"
                },
                "runAfter": {
                    "Execute_JavaScript_Code_3": [
                        "Succeeded"
                    ]
                },
                "type": "SetVariable"
            },
            "Set_variable_3": {
                "inputs": {
                    "name": "newData",
                    "value": "@outputs('Execute_JavaScript_Code_2')?['body']"
                },
                "runAfter": {
                    "Execute_JavaScript_Code_2": [
                        "Succeeded"
                    ]
                },
                "type": "SetVariable"
            },
            "Update_blob": {
                "inputs": {
                    "body": "@body('Create_CSV_table')",
                    "host": {
                        "connection": {
                            "name": "@parameters('$connections')['azureblob']['connectionId']"
                        }
                    },
                    "method": "put",
                    "path": "/datasets/default/files/@{encodeURIComponent(encodeURIComponent('<STORAGE FILE>'))}"
                },
                "runAfter": {
                    "Create_CSV_table": [
                        "Succeeded"
                    ]
                },
                "type": "ApiConnection"
            }
        },
        "contentVersion": "1.0.0.0",
        "outputs": {},
        "parameters": {
            "$connections": {
                "defaultValue": {},
                "type": "Object"
            }
        },
        "triggers": {

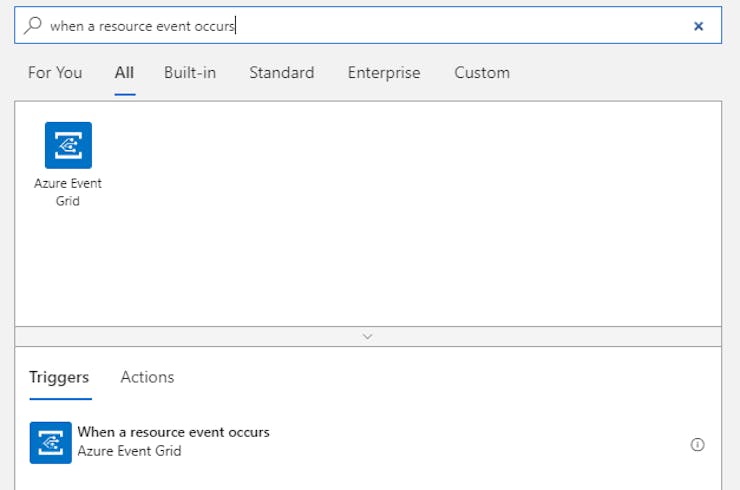

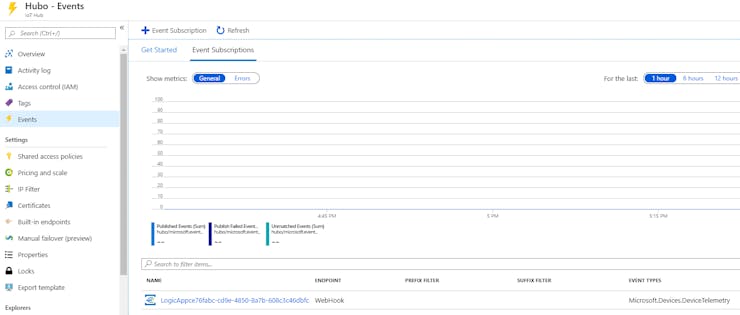

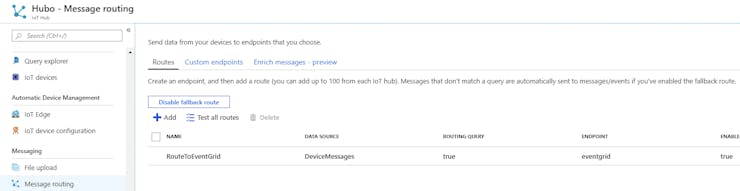

            "When_a_resource_event_occurs": {
                "inputs": {
                    "body": {
                        "properties": {
                            "destination": {
                                "endpointType": "webhook",
                                "properties": {
                                    "endpointUrl": "@{listCallbackUrl()}"
                                }
                            },
                            "filter": {
                                "includedEventTypes": [
                                    "Microsoft.Devices.DeviceTelemetry"
                                ]
                            },
                            "topic": "/subscriptions/<YOUR SUBSCRIPTION ID>/resourceGroups/<RESOURCE GROUP>/providers/Microsoft.Devices/IotHubs/<IOT HUB NAME>"
                        }
                    },
                    "host": {
                        "connection": {
                            "name": "@parameters('$connections')['azureeventgrid']['connectionId']"
                        }
                    },
                    "path": "/subscriptions/@{encodeURIComponent('<YOUR SUBSCRIPTION ID>')}/providers/@{encodeURIComponent('Microsoft.Devices.IoTHubs')}/resource/eventSubscriptions",
                    "queries": {
                        "x-ms-api-version": "2017-09-15-preview"
                    }
                },
                "splitOn": "@triggerBody()",
                "type": "ApiConnectionWebhook"
            }
        }
    }
}

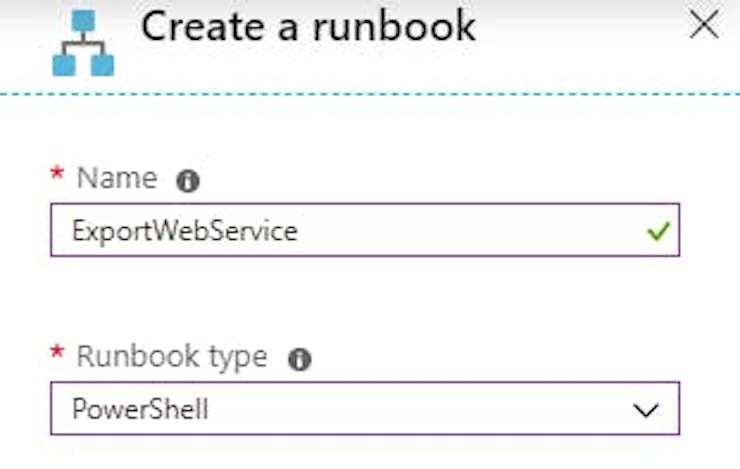

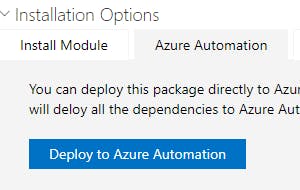

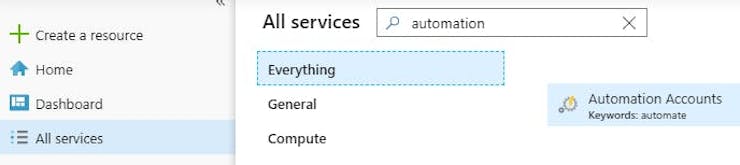

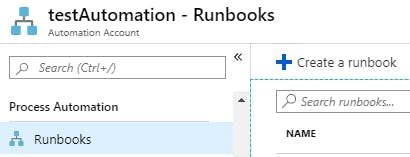

ExportWebService.ps1

Powershell
$User = "<YOUR AZURE EMAIL>"
$PWord = ConvertTo-SecureString -String "<YOUR AZURE PASSWORD>" -AsPlainText -Force
$tenant = "<TENANT ID>"
$subscription = "<SUBSCRIPTION ID>"
$Credential = New-Object -TypeName "System.Management.Automation.PSCredential" -ArgumentList $User,$PWord
$connect = Connect-AzAccount -Credential $Credential -Tenant $tenant -Subscription $subscription

$wsd = Get-AzMlWebService -Name '<PREDICTIVE WEB SERVICE NAME>' -ResourceGroupName '<RESOURCE GROUP>'
$json = Export-AzMlWebService -WebService $wsd -ToJsonString

Write-Output $json

ImportWebService.ps1

Powershell
Param
(
  [Parameter (Mandatory= $true)]
  [String] $wsd
)

$User = "<YOUR AZURE EMAIL>"
$PWord = ConvertTo-SecureString -String "<YOUR AZURE PASSWORD>" -AsPlainText -Force
$tenant = "<TENANT ID>"
$subscription = "<SUBSCRIPTION ID>"
$Credential = New-Object -TypeName "System.Management.Automation.PSCredential" -ArgumentList $User,$PWord
$connect = Connect-AzAccount -Credential $Credential -Tenant $tenant -Subscription $subscription

$wsd = Import-AzMlWebService -JsonString $wsd
$result = Update-AzMlWebService -Name '<PREDICITVE WEB SERVICE NAME>' -ResourceGroupName '<RESOURCE GROUP>'

Write-Output $result

ParticleAzureIot.ino

Arduino
#include <stdio.h>
#include <stdlib.h>

#include "Arduino.h"
#include "ArduinoJson.h"

void sendAzure();
void workLeds(int level);
void myHandler(const char *event, const char *data);

int button = D0;
int RED = D1;
int BLUE = D2;
int GREEN = D3;

static int brightness = 0;
static int hour = 0;
static int levels[24];
bool arrayTime = false;

const int INTERVAL = 10000;

Timer timer(INTERVAL, sendAzure);
void sendAzure(){
    arrayTime = true;
}

void setup() {
    Serial.begin(9600);
    pinMode(RED, OUTPUT);
    pinMode(BLUE, OUTPUT);
    pinMode(GREEN, OUTPUT);
    pinMode(button, INPUT_PULLDOWN);
    timer.start();
    Particle.subscribe("hook-response/getPrediction", myHandler, MY_DEVICES);
}

void loop() {
    static char str[50] = "{\"data\":[";
    if(arrayTime){
      arrayTime = false;
      levels[hour] = brightness;
      //Serial.println(levels[i]);

      char temp[50];
      sprintf(temp, "%d", levels[hour]);
      strcat(str, temp);
      //Serial.printf("Level set to: %s\n", temp);

      hour++;
      if(hour != 24){
        strcat(str, ",");
      } else {
        strcat(str, "]}");
      }

      if(hour == 24){
        hour = 0;

        Serial.printf("Sending to Particle Console: %s\n", str);
        Particle.publish("dataSetFull", str, PRIVATE);
        strcpy(str, "{\"data\":[");
      }

      char hourToString[10];
      sprintf(hourToString, "%d", hour);
      Particle.publish("getPrediction", hourToString, PRIVATE);
    }

    if(digitalRead(button) == HIGH){
      brightness++;
      if(brightness == 5)
        brightness = 0;

      workLeds(brightness);
      delay(200);
    }
}

void myHandler(const char *event, const char *data) {
  char json[500] = "";
  strcpy(json, data);

  //Serial.println(data);

  StaticJsonBuffer<200> jsonBuffer;
  JsonObject& root = jsonBuffer.parseObject(json);
  if (!root.success()) {
    Serial.println("parseObject() failed");
    return;
  }

  JsonObject& first = root["Results"];
  JsonObject& second = first["output1"][0];
  const char* result = second["Scored Labels"];

  int level = atoi(result);

  Serial.printf("[%d] - Brightness Predict: %d\n", hour, level);
  //workLeds(brightness);
}

void workLeds(int level){
  digitalWrite(RED, LOW);
  digitalWrite(BLUE, LOW);
  digitalWrite(GREEN, LOW);

  switch(level) {
    case 0:
      break;
    case 1:
      digitalWrite(RED, HIGH);
      break;
    case 2:
      digitalWrite(BLUE, HIGH);
      break;
    case 3:
      digitalWrite(GREEN, HIGH);
      break;
    case 4:
      digitalWrite(RED, HIGH);
      digitalWrite(BLUE, HIGH);
      digitalWrite(GREEN, HIGH);
      break;
  }
}

Credits

Alex Feng

Alex Feng

1 project • 2 followers
Hi

Comments

Add projectSign up / Login
