Things used in this project

Hardware components:
150803 particle 46
Particle Internet Button
×1
Photon new
Particle Photon
×1
2" PVC Compression Coupling
×1
Clear PVC Tube
3" diameter will fit the internet button perfectly, but you'll need to cut a notch to run the cable. Any length you'd like, but mine was 6", but I probably should have done 8".
×1
Software apps and online services:
Q8wtlimqnp04fzhtr9v5

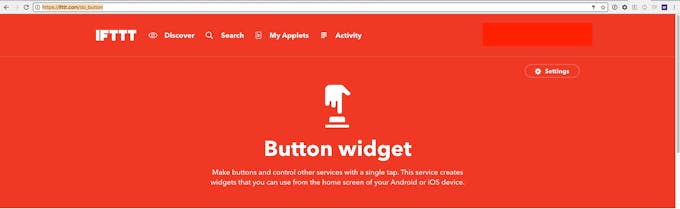

IFTTT Maker service
Hand tools and fabrication machines:
Dremel
Only used this to cut the notch for the cable.
Hot Glue gun
To attach the caps to the tube.

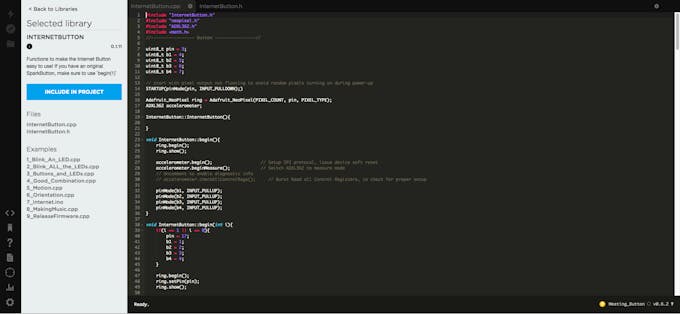

Code

Untitled fileC/C++
#include "InternetButton.h"
int ledState = false;
int prevState = false;
InternetButton b = InternetButton();
void setup() {
   Particle.function("meeting", meeting);
   b.begin();
}
void loop(){
   if (prevState != ledState){
       switch (ledState){
           case 1:
               b.allLedsOn(0,255,0);
               break;
           case 0:
               b.allLedsOn(255,0,0);
               break;
           case -1:
               b.allLedsOff();
               break;
       }
       prevState = ledState;
   }
}
// send  a '1' for Green
// send  a '0' for Red
// send -a '-1' for OFF
int meeting(String command){
   ledState = command.toInt();
   return 1;
}
