Drew and Vishal's MEGR 3171 Project - The Temperature Sensor

Never wonder how hot or cold something is again. Know how hot or cold something is in real time all the time.

IntermediateFull instructions provided30

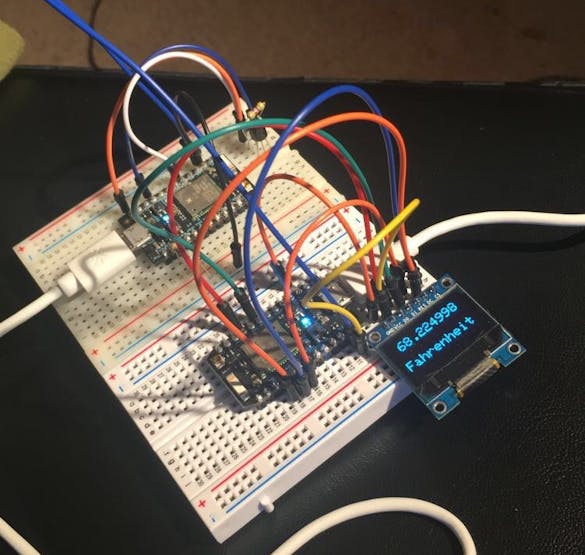

Drew and Vishal's MEGR 3171 Project - The Temperature Sensor

Things used in this project

Hardware components

Photon
Particle Photon
×2
Solderless Breadboard Half Size
Solderless Breadboard Half Size
×2
Temperature Sensor
Temperature Sensor
×1
Particle Serial OLED Screen, 0.96"
×1
Male/Female Jumper Wires
Male/Female Jumper Wires
×12
USB-A to Micro-USB Cable
USB-A to Micro-USB Cable
×2
Resistor 4.75k ohm
Resistor 4.75k ohm
×1
Resistor 100 ohm
Resistor 100 ohm
×1

Software apps and online services

Maker service
IFTTT Maker service

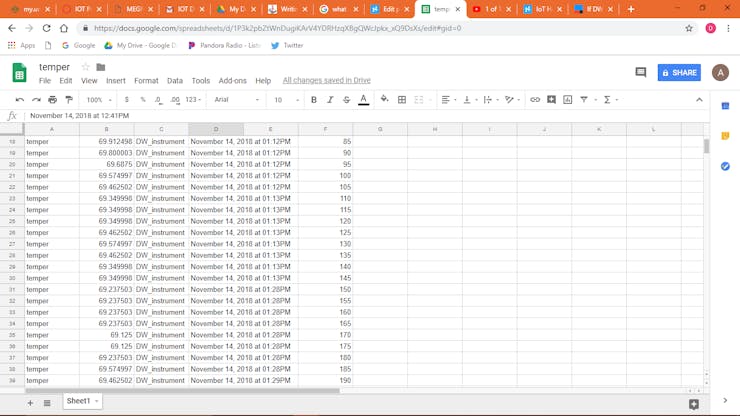

Google Sheets
Google Sheets

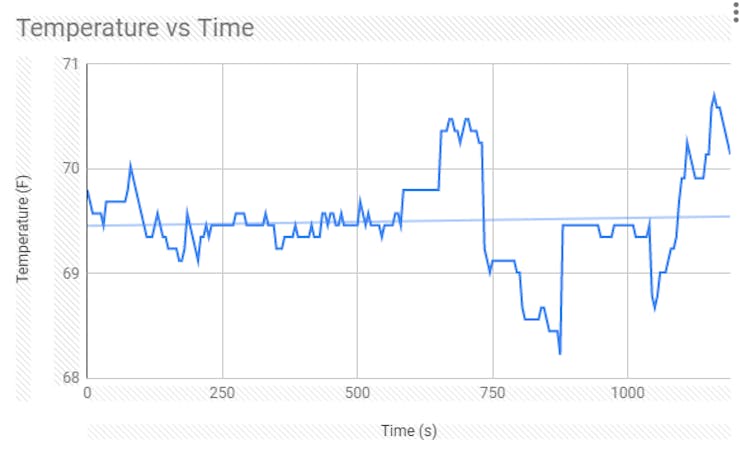

Story

Read more

Schematics

IOT Circuit Schematic

Iot scheme kwjbr6jfhr

Code

Temperature Sensor

C/C++
This code reads the data from the temperature sensor and converts it into degrees Fahrenheit. These converted data readings are then published to the particle console.
// This #include statement was automatically added by the Particle IDE.
#include <Adafruit_SSD1306.h>


// This #include statement was automatically added by the Particle IDE.
#include <OneWire.h>

/************************************************************************
This sketch reads the temperature from a 1-Wire device and then publishes
to the Particle cloud. From there, IFTTT can be used to log the date,
time, and temperature to a Google Spreadsheet. Read more in our tutorial
here: https://docs.particle.io/tutorials/topics/maker-kit

This sketch is the same as the example from the OneWire library, but
with the addition of three lines at the end to publish the data to the
cloud.

Use this sketch to read the temperature from 1-Wire devices
you have attached to your Particle device (core, p0, p1, photon, electron)

Temperature is read from: DS18S20, DS18B20, DS1822, DS2438

Expanding on the enumeration process in the address scanner, this example
reads the temperature and outputs it from known device types as it scans.

I/O setup:
These made it easy to just 'plug in' my 18B20 (note that a bare TO-92
sensor may read higher than it should if it's right next to the Photon)

D3 - 1-wire ground, or just use regular pin and comment out below.
D4 - 1-wire signal, 2K-10K resistor to D5 (3v3)
D5 - 1-wire power, ditto ground comment.

A pull-up resistor is required on the signal line. The spec calls for a 4.7K.
I have used 1K-10K depending on the bus configuration and what I had out on the
bench. If you are powering the device, they all work. If you are using parisidic
power it gets more picky about the value.
************************************************************************/

OneWire ds = OneWire(D4);  // 1-wire signal on pin D4

unsigned long lastUpdate = 0;

float lastTemp;

void setup() {
  Serial.begin(9600);
  // Set up 'power' pins, comment out if not used!
  pinMode(D3, OUTPUT);
  pinMode(D5, OUTPUT);
  pinMode(D1, INPUT);
  digitalWrite(D3, LOW);
  digitalWrite(D5, HIGH);



}

// up to here, it is the same as the address acanner
// we need a few more variables for this example

void loop(void) {
    int n;
    n = digitalRead(D1);
    if (n == 1) {
  byte i;
  byte present = 0;
  byte type_s;
  byte data[12];
  byte addr[8];
  float celsius, fahrenheit;

  if ( !ds.search(addr)) {
    Serial.println("No more addresses.");
    Serial.println();
    ds.reset_search();
    delay(250);
    return;
  }

  // The order is changed a bit in this example
  // first the returned address is printed

  Serial.print("ROM =");
  for( i = 0; i < 8; i++) {
    Serial.write(' ');
    Serial.print(addr[i], HEX);
  }

  // second the CRC is checked, on fail,
  // print error and just return to try again

  if (OneWire::crc8(addr, 7) != addr[7]) {
      Serial.println("CRC is not valid!");
      return;
  }
  Serial.println();

  // we have a good address at this point
  // what kind of chip do we have?
  // we will set a type_s value for known types or just return

  // the first ROM byte indicates which chip
  switch (addr[0]) {
    case 0x10:
      Serial.println("  Chip = DS1820/DS18S20");
      type_s = 1;
      break;
    case 0x28:
      Serial.println("  Chip = DS18B20");
      type_s = 0;
      break;
    case 0x22:
      Serial.println("  Chip = DS1822");
      type_s = 0;
      break;
    case 0x26:
      Serial.println("  Chip = DS2438");
      type_s = 2;
      break;
    default:
      Serial.println("Unknown device type.");
      return;
  }

  // this device has temp so let's read it

  ds.reset();               // first clear the 1-wire bus
  ds.select(addr);          // now select the device we just found
  // ds.write(0x44, 1);     // tell it to start a conversion, with parasite power on at the end
  ds.write(0x44, 0);        // or start conversion in powered mode (bus finishes low)

  // just wait a second while the conversion takes place
  // different chips have different conversion times, check the specs, 1 sec is worse case + 250ms
  // you could also communicate with other devices if you like but you would need
  // to already know their address to select them.

  delay(1000);     // maybe 750ms is enough, maybe not, wait 1 sec for conversion

  // we might do a ds.depower() (parasite) here, but the reset will take care of it.

  // first make sure current values are in the scratch pad

  present = ds.reset();
  ds.select(addr);
  ds.write(0xB8,0);         // Recall Memory 0
  ds.write(0x00,0);         // Recall Memory 0

  // now read the scratch pad

  present = ds.reset();
  ds.select(addr);
  ds.write(0xBE,0);         // Read Scratchpad
  if (type_s == 2) {
    ds.write(0x00,0);       // The DS2438 needs a page# to read
  }

  // transfer and print the values

  Serial.print("  Data = ");
  Serial.print(present, HEX);
  Serial.print(" ");
  for ( i = 0; i < 9; i++) {           // we need 9 bytes
    data[i] = ds.read();
    Serial.print(data[i], HEX);
    Serial.print(" ");
  }
  Serial.print(" CRC=");
  Serial.print(OneWire::crc8(data, 8), HEX);
  Serial.println();

  // Convert the data to actual temperature
  // because the result is a 16 bit signed integer, it should
  // be stored to an "int16_t" type, which is always 16 bits
  // even when compiled on a 32 bit processor.
  int16_t raw = (data[1] << 8) | data[0];
  if (type_s == 2) raw = (data[2] << 8) | data[1];
  byte cfg = (data[4] & 0x60);

  switch (type_s) {
    case 1:
      raw = raw << 3; // 9 bit resolution default
      if (data[7] == 0x10) {
        // "count remain" gives full 12 bit resolution
        raw = (raw & 0xFFF0) + 12 - data[6];
      }
      celsius = (float)raw * 0.0625;
      break;
    case 0:
      // at lower res, the low bits are undefined, so let's zero them
      if (cfg == 0x00) raw = raw & ~7;  // 9 bit resolution, 93.75 ms
      if (cfg == 0x20) raw = raw & ~3; // 10 bit res, 187.5 ms
      if (cfg == 0x40) raw = raw & ~1; // 11 bit res, 375 ms
      // default is 12 bit resolution, 750 ms conversion time
      celsius = (float)raw * 0.0625;
      break;

    case 2:
      data[1] = (data[1] >> 3) & 0x1f;
      if (data[2] > 127) {
        celsius = (float)data[2] - ((float)data[1] * .03125);
      }else{
        celsius = (float)data[2] + ((float)data[1] * .03125);
      }
  }

  // remove random errors
  if((((celsius <= 0 && celsius > -1) && lastTemp > 5)) || celsius > 125) {
      celsius = lastTemp;
  }

  fahrenheit = celsius * 1.8 + 32.0;
  lastTemp = celsius;

  Serial.print("  Temperature = ");
  Serial.print(celsius);
  Serial.print(" Celsius, ");
  Serial.print(fahrenheit);
  Serial.println(" Fahrenheit");


  // now that we have the readings, we can publish them to the cloud
  String temp = String(fahrenheit); // store temp in "temperature" string
  Particle.publish("temper", temp, PRIVATE);// publish to cloud
  delay(1000); // 5 second delay
  }}

OLED Screen Temperature Display

C/C++
This code pulls data from the particle console and displays it on the OLED screen. This happens every time the console updates.
// This #include statement was automatically added by the Particle IDE.
#include <Adafruit_SSD1306.h>

/*****************************************************************************
Particle Maker Kit Tutorial #2: Next Bus Alert

This tutorial uses a Particle Photon and the OLED screen from the Particle
Maker Kit. It uses a webhook to retrieve bus prediction times from the
NextBus Public XML feed, which must be set up first along with the webhook.
See https://docs.particle.io/tutorials/topics/maker-kit to learn how!

NOTE: This code example requires the Adafruit_SSD1306 library to be included,
so make sure to add it via the Libraries tab in the left sidebar.
******************************************************************************/

// use hardware SPI
#define OLED_DC     D3
#define OLED_CS     D4
#define OLED_RESET  D5
Adafruit_SSD1306 display(OLED_DC, OLED_RESET, OLED_CS);

// variable to make sure we don't give bus warning too often
int  x, minX; // variables for scrolling code
String rTemp;



// create a software timer to get new prediction times every minute




void setup()   {
  // start the data retrieval timer
  //timer.start();

  //subscribe to the get_nextbus event so we can get the data from the webhook
    Serial.begin(1000);
    display.begin(SSD1306_SWITCHCAPVCC);
    Particle.subscribe("temper", theHandler, MY_DEVICES);
  // by default, we'll generate the high voltage from the 3.3v line internally! (neat!)

  display.setTextSize(2);       // text size
  display.setTextColor(WHITE); // text color
  display.setTextWrap(true); // turn off text wrapping so we can do scrolling
  x    = display.width(); // set scrolling frame to display width
  minX = -4000; // 630 = 6 pixels/character * text size 7 * 15 characters * 2x slower
}
/*
void loop() {

  // this code displays the next bus times on the OLED screen with fancy scrolling
  display.clearDisplay();
  display.setCursor(x/10, 5);
  Serial.println(rTemp);
  display.print(" F");
  display.display();





 // if(--x < minX) x = display.width()*2;

  // give a "time to leave!" beeping warning, but only once per bus
}
*/
void theHandler(const char *temper, const char *data)
{

  display.clearDisplay();
  display.setCursor(x/13, 5);
  display.println(data);
  display.print("Fahrenheit");
  display.display();



}
