Things used in this project

Hardware components:
Photon new
Particle Photon
×1
Scanalogic-2 EDU KIT
×1
Adafruit Si7021
×1
Software apps and online services:
Scanastudio
Free
Hackster

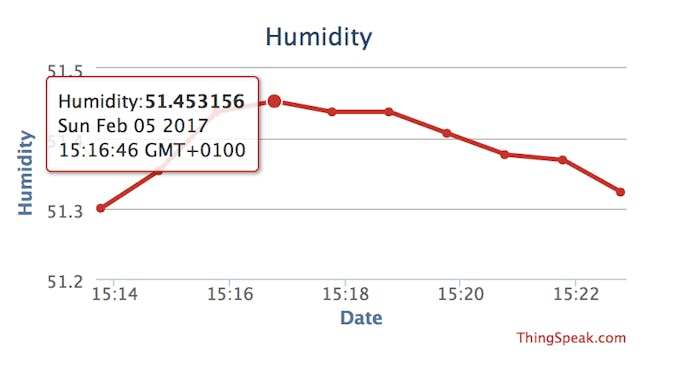

ThingSpeak API
Optional, only for convenient validation.

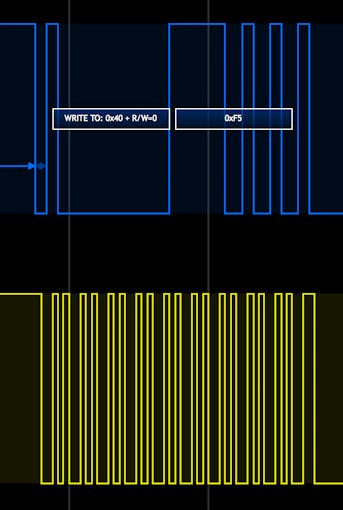

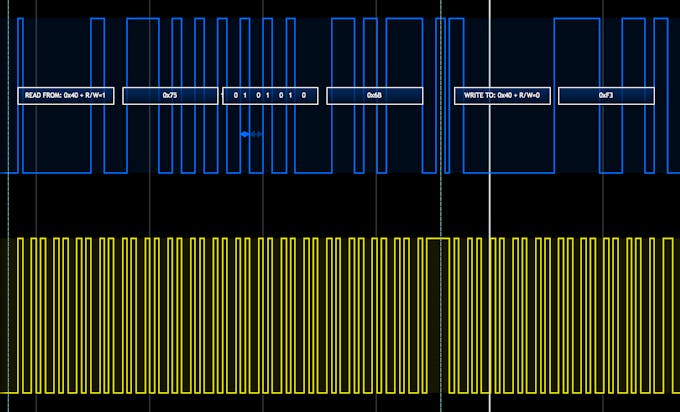

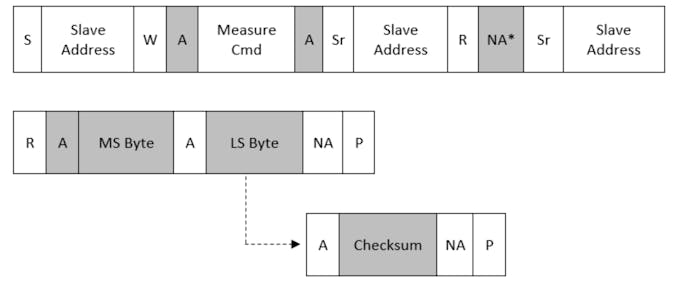

Schematics

Breadboard with Photon, Si 7021 and connections to the logic analyzer
The breadboard with the Particle Photon, the Adafruit Si7021 sensor and the connections to the Scanalogic-2 EDU KIT. For details see my project Measuring temperature and humidity with Particle Photon.
Si7021 scanalogic steckplatine xd3c1qgbzl

Code

CodeC/C++
The code for the project. For details see my project Measuring temperature and humidity with Particle Photon.
// Connect Vin to 3-5VDC
// Connect GND to ground
// Connect SCL to I2C clock pin (D1 on Photon/Electron)
// Connect SDA to I2C data pin  (D0 on Photon/Electron)


#include "Adafruit_Si7021.h"   // Use for Build IDE
// #include "Adafruit_Si7021.h"               // Use for local build

Adafruit_Si7021 sensor = Adafruit_Si7021();
double h;
double t;

void setup() {
    sensor.begin();

    // Variable for IFTTT
    Particle.variable("t", &t, DOUBLE);
    Particle.variable("h", &h, DOUBLE);
}

void loop() {

    h = sensor.readHumidity();
    t = sensor.readTemperature();

    // Publish data
    String temperature = String(t);
    String humidity = String(h);

    temperature = temperature.format("%1.2f", t);

    Particle.publish("temperature", temperature, PRIVATE);
    delay(30000);

    Particle.publish("humidity", humidity, PRIVATE);
    delay(30000);
}

Credits

5a72c17e1c96dc7d87a5b71454201325
Moritz Strube

I’m an experienced technology manager and business developer with deep interest in technology, innovation and science.
