Best Alarm Clock Ever Created

An alarm clock that actually wakes you up.

EasyFull instructions provided5 hours964
Best Alarm Clock Ever Created

Things used in this project

Hardware components

Photon
Particle Photon
×2
Servos (Tower Pro MG996R)
×2
Jumper wires (generic)
Jumper wires (generic)
×1
Breadboard (generic)
Breadboard (generic)
×2

Software apps and online services

Maker service
IFTTT Maker service

Story

Read more

Schematics

Bell Circuit

This diagram shows the circuit that was used to control the bell
Bell fi7xnf7wfo

Light Switch Circuit Diagram

This diagram shows the circuit that was used to control the light switch
Light dqwyesca0b

Code

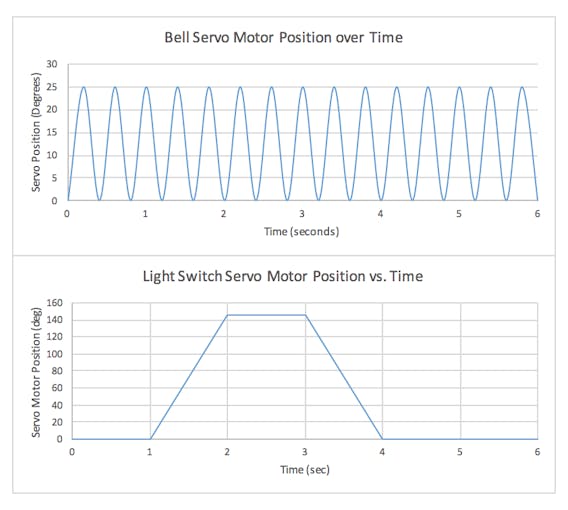

Bell Servo Motor Control

C/C++

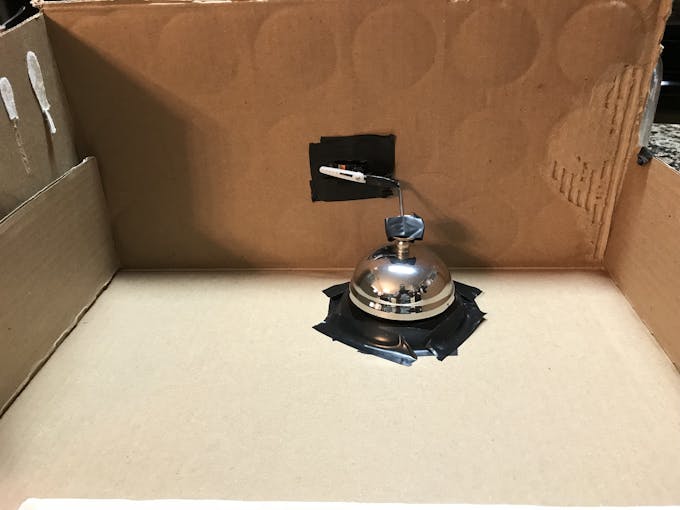

This code will be used along with IFTTT to be able to ring the bell at a certain time
Servo myservo;  // create servo object to control a servo
                // a maximum of eight servo objects can be created

int pos = 0;    // variable to store the servo position

void setup()
{
    Particle.function("bell", bell);  // create a function called "bell" that
                                      // can be called from the cloud
                                      // connect it to the bell function below

    myservo.attach(D0);   // attach the servo on the D0 pin to the servo object
    myservo.write(25);    // test the servo by moving it to 25°
    pinMode(D7, OUTPUT);  // set D7 as an output so we can flash the onboard LED
}

int bell(String command)   // when "bell" is called from the cloud, it will
{                          // be accompanied by a string.

    if(command == "alarm")     // if the string is "alarm",
    {
        for (int i = 0; i < 30; i++) // ring the bell 3 times.
        {
            myservo.write(0);       // move servo to 0° - ding!
            digitalWrite(D7, HIGH); // flash the LED
            delay(100);             // wait 100 ms
            myservo.write(25);      // move servo to 25°
            digitalWrite(D7, LOW);  // turn off LED
            delay(200);            // wait 1 second between bells

            Particle.publish("Motor", "Lights on", PUBLIC);
        }
        return 2;                   // return a status of "2"
    }

}


void loop()
{
  // empty because we call the gong function via the cloud
}

Light Switch Subscription Code

C/C++

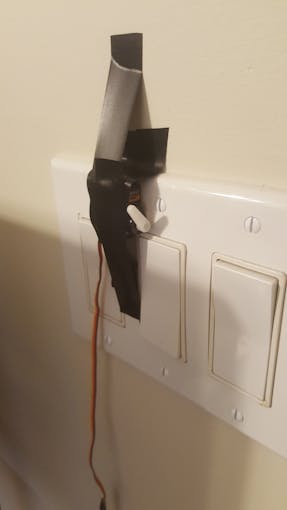

This code subscribes to the Bell Servo Motor Control Code from the cloud and activates a servo motor that turns the lights on
Servo myservo;  // create servo object to control a servo
                // a maximum of eight servo objects can be created

void setup()
{
  myservo.attach(D1);  // attaches the servo on the D1 pin to the servo object
  // Only supported on pins that have PWM
myservo.write(35); // starts motor at 35 degrees
}

void loop()
{
Particle.subscribe("Motor", LightsOn, "46002b000851363136363935");
  // Subscribe will listen for the event Motor and, when it finds it, will run the function LightsOn
  delay(1000); // delays the motion 1 sec after subscribing to "Motor" event
}

void LightsOn(const char *event, const char *data)
{
  /* Particle.subscribe handlers are void functions, which means they don't return anything.
  They take two variables-- the name of your event, and any data that goes along with your event. */


   if (strcmp(data,"Lights on")==0) { // if the data from "Motor" reads "Lights on" than the servo will rotate
    myservo.write(180);              // the servo arm will rotate 180 degrees
    delay(1000);                     // this makes a 1 second delay before the arm returns.
    myservo.write(35);              // arm returns to 35 degrees (starting point)
  }

}
