Lane Tech HS - Temperature Notification

Introduction

This project was designed to inform when the room you are in currently has reached a temperature that is uncomfortable. There are many ways to set up a notification, I notified myself with a phone call.

Hardware Setup

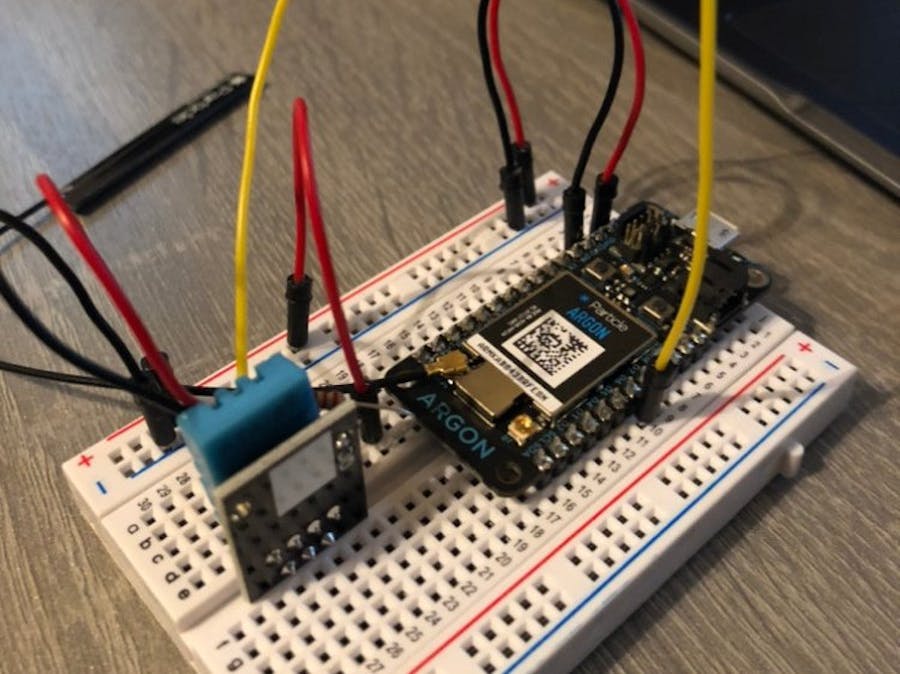

Here are a few angles of the wiring setup for this project. I used a Particle Argon and a temperature and humidity sensor on a standard breadboard.

Reading Temperature

Before setting up any notifications about the temperature of the room, I had to code the device to be able to read the temperature of the room.

This is the code for the initial setup. I imported the Adafruit_DHT.h API for this project.

#include <Adafruit_DHT.h>

#define DHTPIN D6

#define DHTTYPE DHT11

DHT dht(DHTPIN, DHTTYPE);

This was my setup function.

void setup() {

 pinMode(D7, OUTPUT);
 Serial.begin(9600);
 dht.begin();

}

In my loop function, I find the humidity and the temperature in both Fahrenheit and Celsius. While I only use Fahrenheit for this project, it can be modified to be triggered by the humidity in a room or by a certain degree in Celsius measurement.

In addition, I have around a 10 second delay between temperature readings.

void loop() {
    delay(10000);

    float f = dht.getTempFarenheit();

Now to check that the sensor was correctly reading the temperature of the room, I printed the temperature (in degrees Fahrenheit) to the serial monitor.

Serial.print(dht.getTempFarenheit());
Serial.println(" degrees F");

Now my project was reading the temperature of the room, and I could check what the temperature was anytime the Argon was plugged in and running.

IFTTT Notification

To receive a notification from IFTTT, I first had my Argon publish an event whenever the temperature (in Fahrenheit) was greater than a certain index. In addition, I added a safety measure in the form of an if-statement, so if the sensor received an incorrect reading (a temperature that was a clear outlier) it would not be counted.

    if (isnan(f) || dht.getTempFarenheit() > 85.00) {
        Serial.println("Failed to read from DHT sensor!");
        return;
    }

    else if (dht.getTempFarenheit() > 74.00){
        Particle.publish("tooHot", "openDoor");
    }

Once this was done, I setup the IFTTT applet. In my IFTTT applet, I had it so that if the event was published from my Particle Argon, I would then receive a phone call, telling me to open my door.

Here is a recording of the phone call received.

While it can take a while for an IFTTT notification to be triggered, it is an effective way to get notified.
