Things used in this project

Hardware components:
Photon new
Particle Photon
Since we had three remote temperature monitoring setups, we have three times as many materials.
×3
10988 01
Temperature Sensor
We used the DS18B20 uncovered and covered temperature sensors to make this project.
×3
Mfr 25frf52 1k sml
Resistor 1k ohm
4.7K ohm resistors are an option as well, we just noticed more issues with receiving proper temperature measurements when using them.
×3
11026 02
Jumper wires (generic)
×12
Software apps and online services:
Ubidots
Ubidots

Code

DS18B20 Temperature Sensor to Ubidots codeC/C++

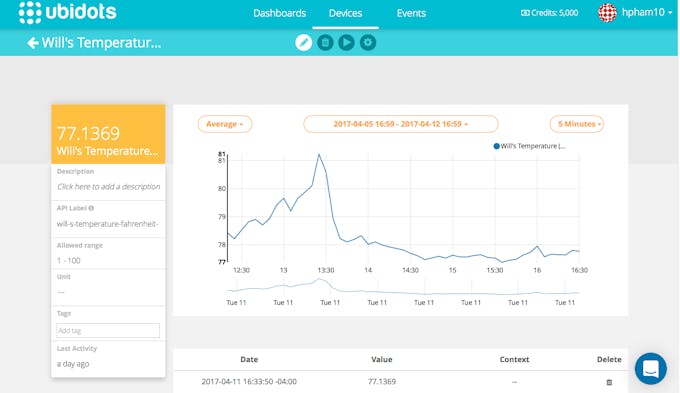

This is a basic code using the Particle.io build app. We include the HTTPClient, OneWire and Spark-dallas-temperature libraries to read our DS18B20 temperature sensor. In order to get data to Ubidots, you need to find and include the VARIABLE_ID and TOKEN and insert into the code on lines 19 and 20 respectively. The only problem we ran into was that the spark-dallas-temperature library included in particle build was not updated. Line 27 in the spark-dallas-temperature.h file was changed to #include <OneWire.h> and added next to our original code.
// This #include statement was automatically added by the Particle IDE.
#include "spark-dallas-temperature.h"

// This #include statement was automatically added by the Spark IDE.
#include "HttpClient/HttpClient.h"

// This #include statement was automatically added by the Spark IDE.
#include "OneWire.h"


#define ONE_WIRE_BUS D2
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensor(&oneWire);
float temperaturef = 0.0;
float temperature = 0.0;
char resultstr[64];
HttpClient http;

#define VARIABLE_ID "58ecf2787625422c3a418de6"
#define TOKEN "TASZcmIv4eg1oS180p4kKHs31Zy81q"

http_header_t headers[] = {
      { "Content-Type", "application/json" },
      { "X-Auth-Token" , TOKEN },
    { NULL, NULL } // NOTE: Always terminate headers will NULL
};

http_request_t request;
http_response_t response;

void setup() {
    request.port = 80;
    request.hostname = "things.ubidots.com";
    request.path = "/api/v1.6/variables/"VARIABLE_ID"/values";
    Serial.begin(9600);
    sensor.begin();
}

void loop() {
 sensor.requestTemperatures();
 temperature=sensor.getTempCByIndex( 0 );
 temperaturef=((1.81*temperature)+32);
 sprintf(resultstr, "{\"value\":%.4f}",temperaturef);
 request.body = resultstr;//Sending presence to Ubidots
 http.post(request, response, headers);
 Serial.println(response.status); //For debug only
 Serial.println(response.body);
 delay(1000);
}
