Jedi Force Gestures Based Home Automation

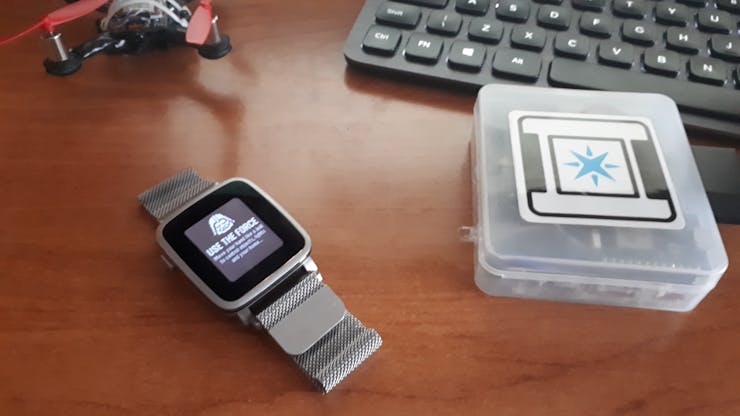

Use your smartwatch to control your electronics at home like a Jedi knight! A modern and elegant IoT home automation solution with Photon.

IntermediateFull instructions provided6 hours1,110
Jedi Force Gestures Based Home Automation

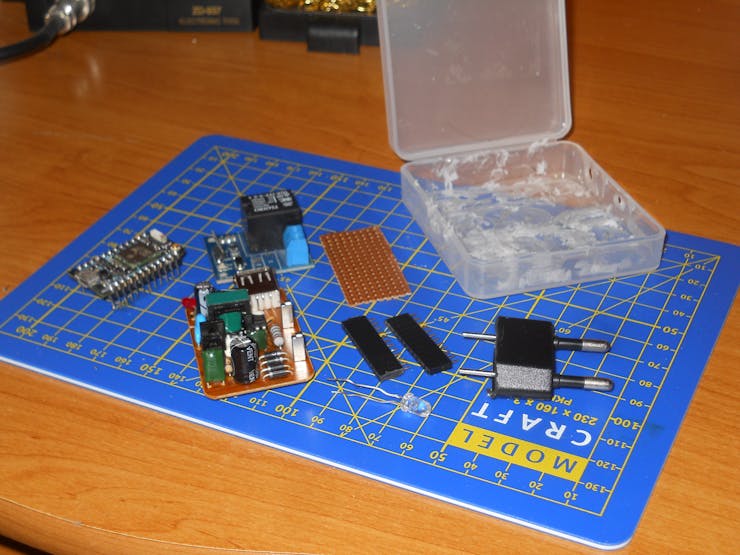

Things used in this project

Hardware components

Photon
Particle Photon
×1

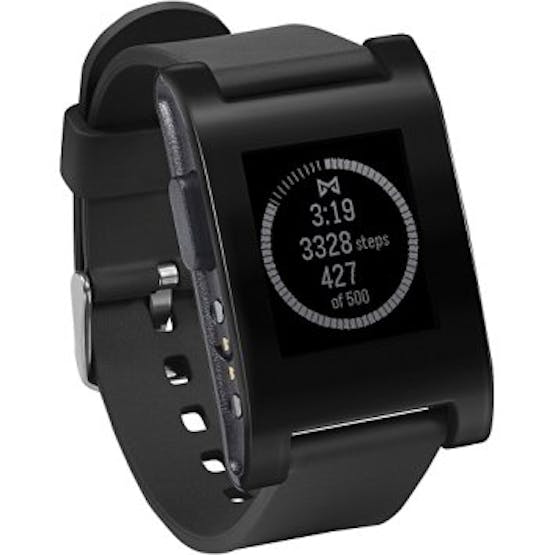

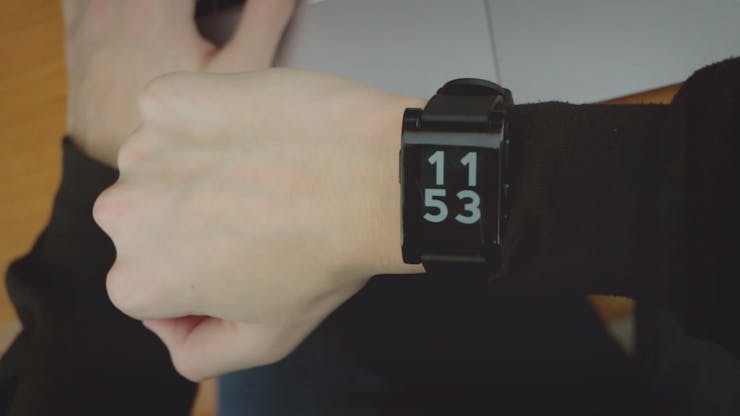

Pebble Time Steel
Pebble Time Steel
×1
Relay (generic)
×1
Small Plastic Box
×1
5v AC/DC Wallplug Adapter
×1

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Rotary Tool (like Dremel)

Story

Read more

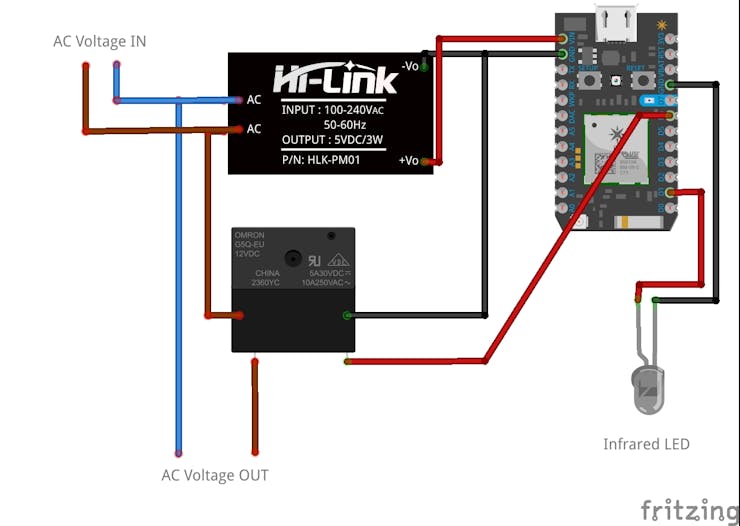

Schematics

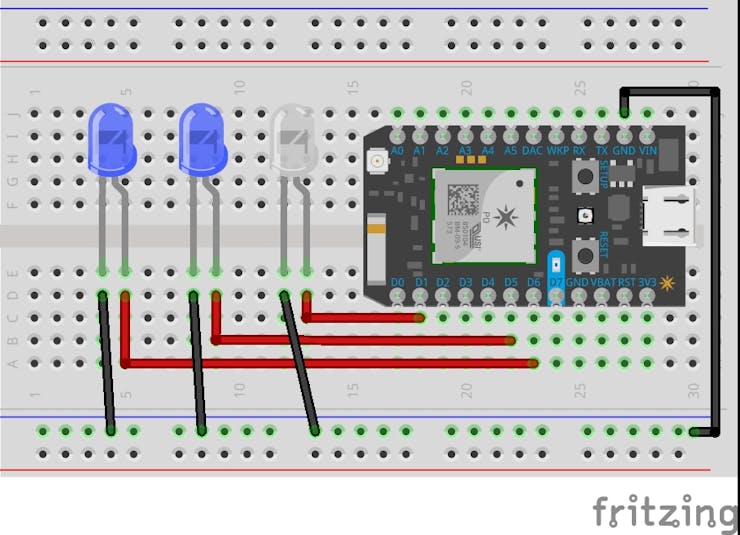

Circuit

Connections between the electronic components.
Fomntrdiylztxxj large c2jesrfcfb

Code

Pebble Code (app.js)

JavaScript
Program for the Pebble Smartwatch
//Project created by Tamas Imets for Jedi Home Automation Project</p><p>var Accel = require('ui/accel'); //enabling accelerometer
Accel.init();
var UI = require('ui');
var ajax = require('ajax');
var Vector2 = require('vector2');

// Create Window
var main_window = new UI.Window();

// Open Button and Display
var txtOnLabel = new UI.Text({
    position: new Vector2(0, 60),
    size: new Vector2(144, 30),
    font: 'Gothic 28 Bold',
    text: 'USE THE FORCE',
    textAlign: 'center',
    color: 'white'
});

//making text
var info = new UI.Text({
    position: new Vector2(2, 90),
    size: new Vector2(142, 60),
    font: 'Gothic 14',
    text: 'Move your hand like a Jedi to control objects, lights and your home...',
    textAlign: 'center',
    color: 'white'
});

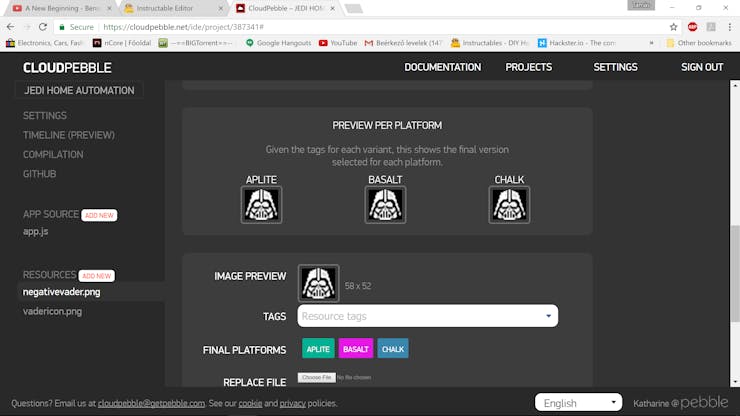

//adding image
var image = new UI.Image({
  position: new Vector2(0, 8),
  size: new Vector2(144, 50),
  alignImage: 'center',
  image: 'images/negativevader.png'
});

// Display Main Window
main_window.backgroundColor('black');
main_window.add(txtOnLabel);
main_window.add(info);
main_window.add(image);
main_window.show();

// URL To Particle Cloud
function Toggle(function_name,function_value){
  var URL = 'https://api.particle.io/v1/devices/your code/' + function_name +'?access_token=your token';

  ajax(
    {
      url: URL,
      method: 'post',
      type: 'json',
      data: { "args": function_value}
    }
  );
}

// Accelerometer Poll and Function (Default 100Hz 25)
//Different Gestures
Accel.on('data', function(e) {
  console.log(e.accel.z);
  if (e.accel.z > 1200) { //if I make this gesture...
    if(e.accel.y > 200) {
      if(e.accel.x < 400) {
  Toggle('jedi','pull'); //send this signal
  }}}});

  Accel.on('data', function(e) {
  console.log(e.accel.x);
  if (e.accel.x > 700) {
  Toggle('jedi','push');
  }});

  Accel.on('data', function(e) {
  console.log(e.accel.y);
  if (e.accel.y > 1200) {
    if(e.accel.z < -200) {
      if(e.accel.z < 100) {
  Toggle('jedi','throw');
  }}}});

  // Button Function and Photon Parameters
main_window.on('click', 'up', function() {
  Toggle('jedi','pull');
});

main_window.on('click', 'select', function() {
  Toggle('jedi','push');
});

main_window.on('click', 'down', function() {
  Toggle('jedi','throw');
});
