Things used in this project

Hardware components:
Pi 3 02
Raspberry Pi 3 Model B
×1
Particle Pi
×1
Software apps and online services:
Particle Cloud

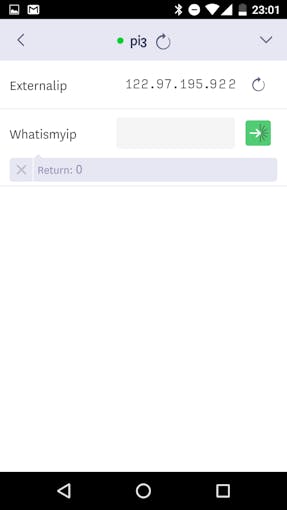

porter app

Code

whatismyip.inoC/C++

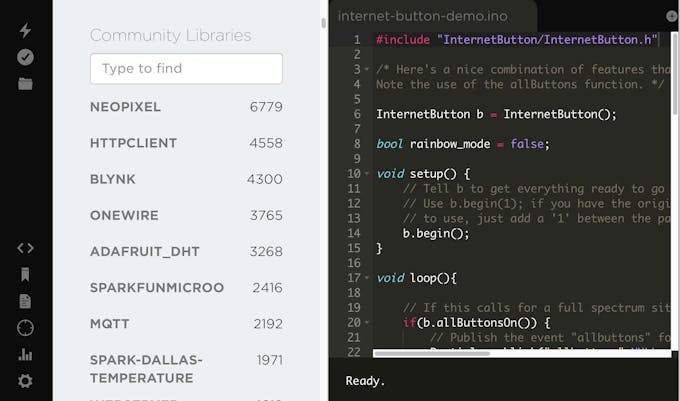

copy-paste this code in your Particle IDE of choice
#include "application.h"

String externalip = "";

void setup() {

  // declare cloud variables
  // https://docs.particle.io/reference/firmware/photon/#particle-variable-
  // Up to 20 cloud variables may be registered and each variable name is limited to a maximum of 12 characters.
  Particle.variable("externalip", externalip);

  // declare cloud functions
  // https://docs.particle.io/reference/firmware/photon/#particle-function-
  // Up to 15 cloud functions may be registered and each function name is limited to a maximum of 12 characters.
  Particle.function("whatismyip", whatismyip);

}

void loop() {
void loop() {
 // this delay will slow down this rasppi particle agent process so the pi keeps its cool ;)
 // without this delay, top (the command line util on the pi) shows 100% CPU use (of the firmware.bin process)
 // with this delay, top shows 2% CPU use, much better
 delay(1000);
}
}


int whatismyip( String dummyParameter ) {

  // source: http://askubuntu.com/questions/95910/command-for-determining-my-public-ip
  Process proc = Process::run("curl ipinfo.io/ip");
  proc.wait();

  // The output is the external IP of the rasp PI
  String ipAddress = proc.out().readString();

  // publish it in the console
  Particle.publish("External IP", ipAddress );

  //refresh the cloud variable
  externalip = ipAddress;

  return 0;
}

Credits

Img 20160904 wa0001
Gustavo Gonnet

If you need professional help with a project, contact me at gusgonnet@gmail.com
