Things used in this project

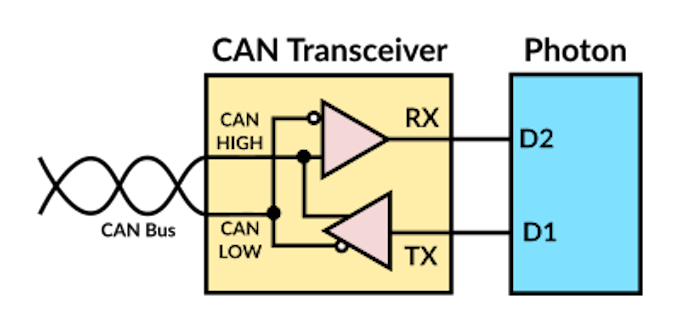

Schematics

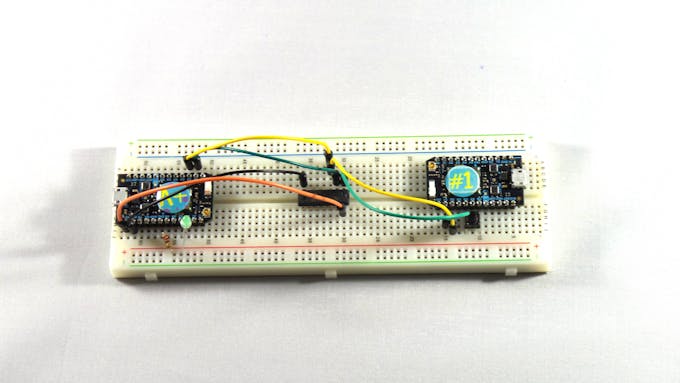

Poor Man's CAN circuit
Poor man can bb u7mbmdcksd

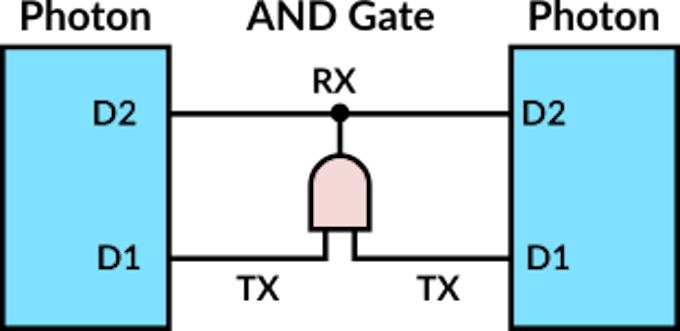

Poor Man's CAN schematics
Poor man can schem bdgzky5dje

Code

CAN receiver codeArduino
Flash to the Photon with the button
const auto ledPin = A3;
const auto ledPowerPin = A6;
CANChannel can(CAN_D1_D2);
const auto canSpeed = 500000;

void setup() {
  pinMode(ledPowerPin, OUTPUT);
  digitalWrite(ledPowerPin, HIGH);
  pinMode(ledPin, OUTPUT);
  can.begin(canSpeed);
}

void loop() {
  CANMessage message;

  while(can.receive(message)) {
    if (message.id == 0x100) {
      digitalWrite(ledPin, !message.data[0]);
    }
  }

  delay(100);
}
CAN transmitter codeArduino
Flash to the Photon with the LED
const auto buttonPin = D4;
const auto buttonPowerPin = D6;
CANChannel can(CAN_D1_D2);
const auto canSpeed = 500000;

void setup() {
  pinMode(buttonPowerPin, OUTPUT);
  digitalWrite(buttonPowerPin, HIGH);
  pinMode(buttonPin, INPUT_PULLDOWN);
  pinMode(D7, OUTPUT);
  can.begin(canSpeed);
}

void loop() {
  bool button = digitalRead(buttonPin);
  digitalWrite(D7, button);
  CANMessage message;

  message.id = 0x100;
  message.len = 1;
  message.data[0] = button;

  can.transmit(message);

  delay(100);
}
